EV GMC HPD1 SIC FS03 12

英飞凌 HybridPACK ™ Drive CoolSiC ™评估套件助力主逆变器应用中的汽车 SiC 模块
用户手册

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EV GMC HPD1 SIC FS03 12
EV GMC HPD1 SIC FS03 12
用户手册

商品详情

  • Board Type
    Evaluation Board, Reference Board
  • Product Name
    The Evaluation Kit for HybridPACK™ Drive CoolSiC™
  • Applications
    Automotive SiC Modules
  • Topology
    B6 Bridge
  • Description
    Main inverter Evaluation Kit including HybridPACK™ Drive CoolSiC™, gate driver board, DC link capacitor, and reference aluminum cooler.
  • Target Application
    Automotive, Motor Control & Drives, Electromobility, E-Bikes & Small E-Vehicles
  • Family
    SiC Modules
  • Qualification
    Automotive
  • Input Type
    DC
受到推崇的
OPN
EVGMCHPD1SICFS0312TOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

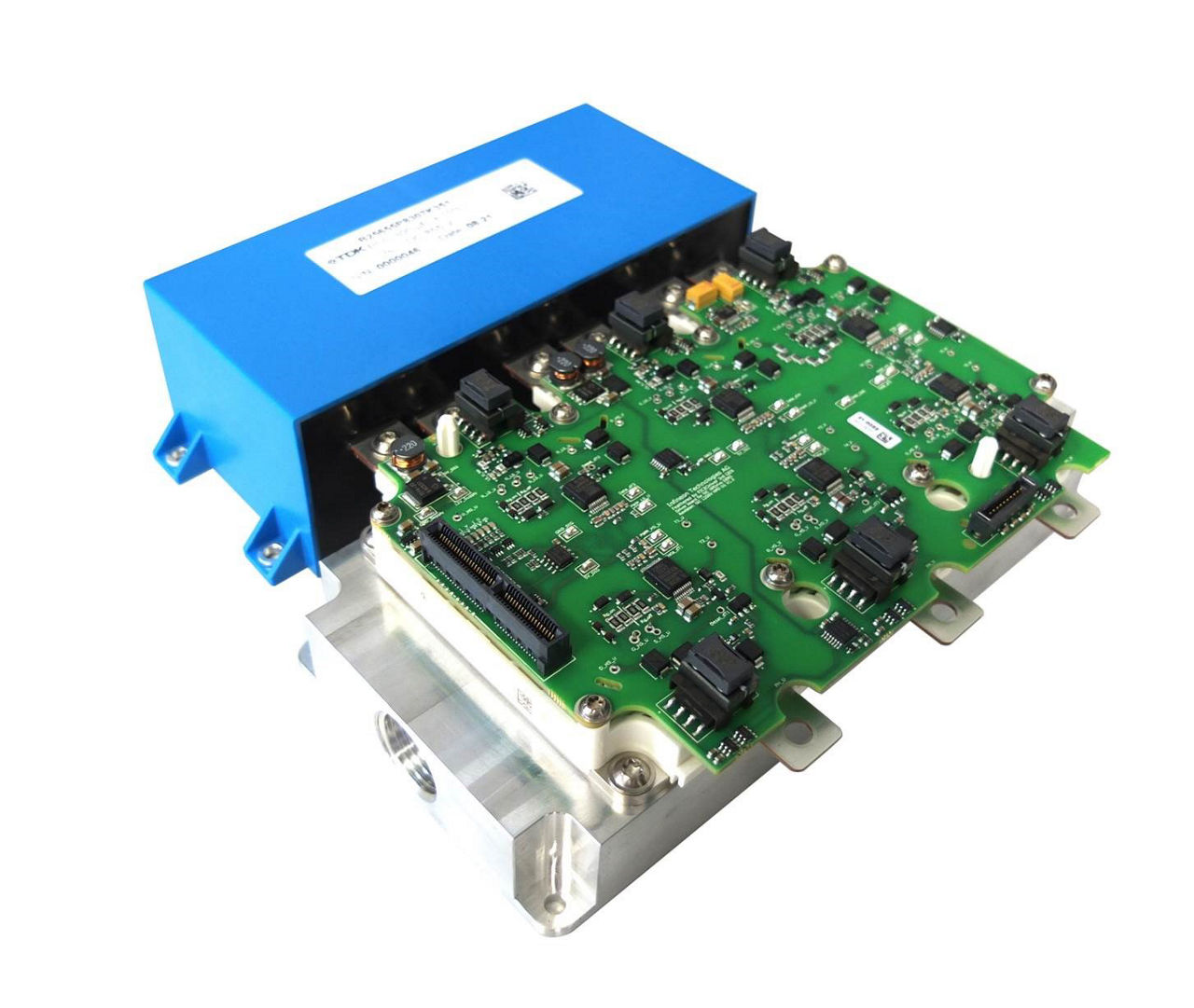

The Evaluation Kit for HybridPACK™ Drive CoolSiC™ Automotive Power Module FS03MR12A6MA1B is designed for B6-bridge xEV main inverter applications. It showcases the latest Infineon power module, setting a new market benchmark with outstanding performance. This easy-to-use kit is suitable for laboratory environments and can drive loads up to 200 kW, while being prepared for fluid cooling. It includes the HybridPACK™ Drive CoolSiC™, gate driver board, DC link capacitor, and a reference aluminum cooler to demonstrate its capabilities effectively.

特性

  • HybridPACK ™驱动器 CoolSiC ™评估套件
  • 适用于 xEV 主逆变器
  • 配备最新的电源模块
  • 表现出色
  • 可驱动高达 200 kW 的负载
  • 准备进行液体冷却

产品优势

  • 节省设计时间
  • 实现对 SiC 模块的快速评估

应用
