Virtual design | Three-phase BLDC motor drive evaluation board with CoolGaN™ Drive
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2727B1M_GAN_MD
EVAL_2727B1M_GAN_MD
User manual


产品详情

  • Pout
    300 W
  • 供电电压
    220 Vac
  • 封装
    LGA 6x8
  • 拓扑
    Three-phase half-bridge
  • 目标应用程序
    HVAC, Industrial Machines, Robotics, Home Appliances
  • 系列
    CoolGaN™ Drive HB 600 V G5
  • 质量等级
    Industrial

OPN
产品状态
英飞凌封装名称
封装名
封装尺寸
封装类型
湿度
防潮封装
无铅
无卤素
符合RoHS标准

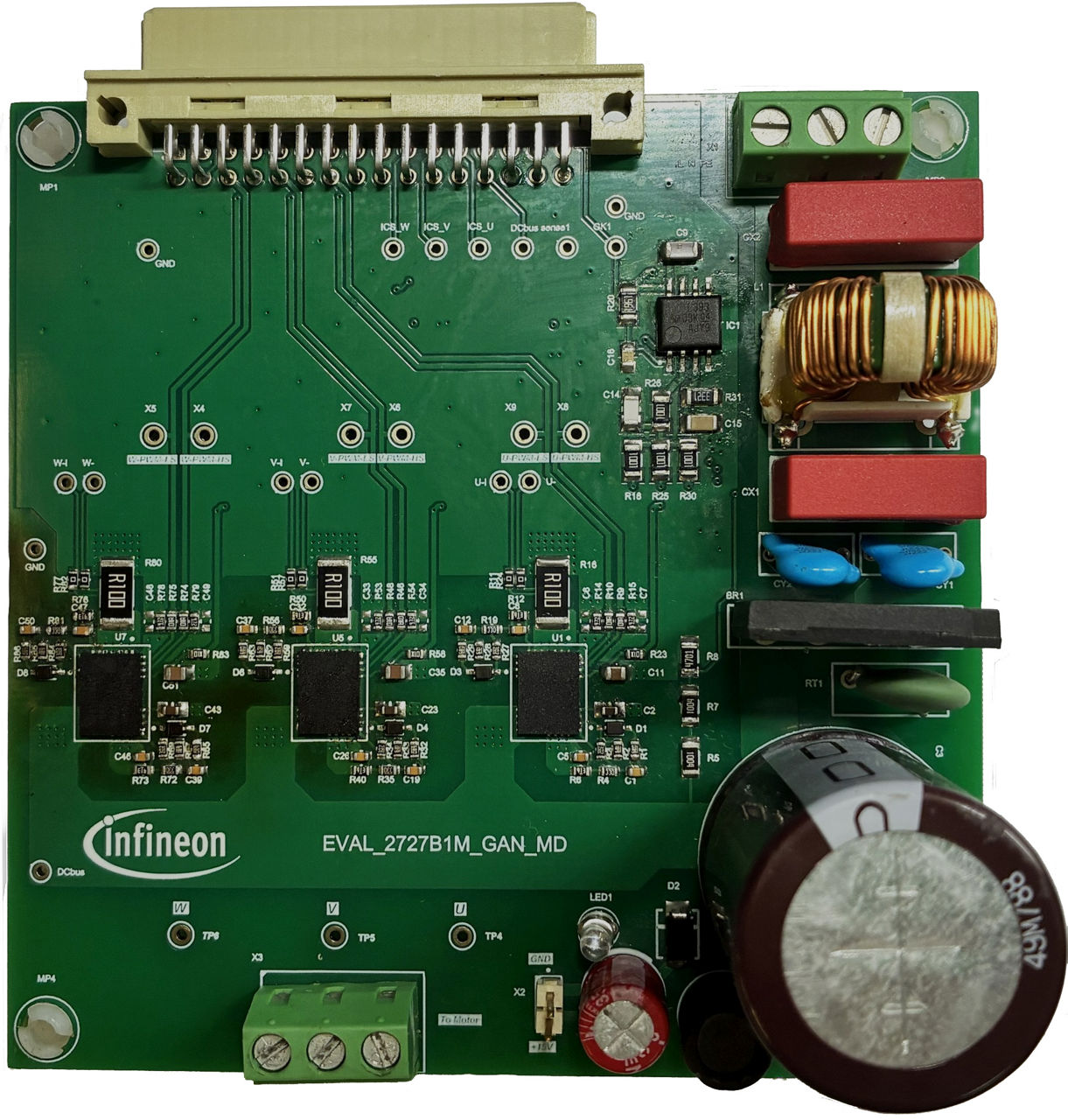

EVAL_2727B1M_GAN_MD is a 300 W three-phase motor drive evaluation board based on the CoolGaN™ Drive HB 600 V G5 (IGI60L2727B1M). The board is designed with a MADK-M5 connector, compatible with the KIT_PSC3M5_CC2 PSOC™ Control C3 Motor Control Evaluation Kit, to enable quick device evaluation.

特性

  • 300 W 3-phase motor drive
  • 90-264 Vac input range
  • Up to 60 kHz switching
  • 15 V & 5 V aux supply

产品优势

  • Improved system efficiency
  • Lower switching losses
  • Heatsink-free operation
  • Compact board footprint
  • Simple system design

Bill of Material
