EVAL-F3L8MXTR12C2M2_P
新品
按需供应
符合RoHS标准

EVAL-F3L8MXTR12C2M2_P

新品
A single-phase evaluation board for active front with EasyPACK™ 2C CoolSiC™ MOSFET 1200 V M2 .XT

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

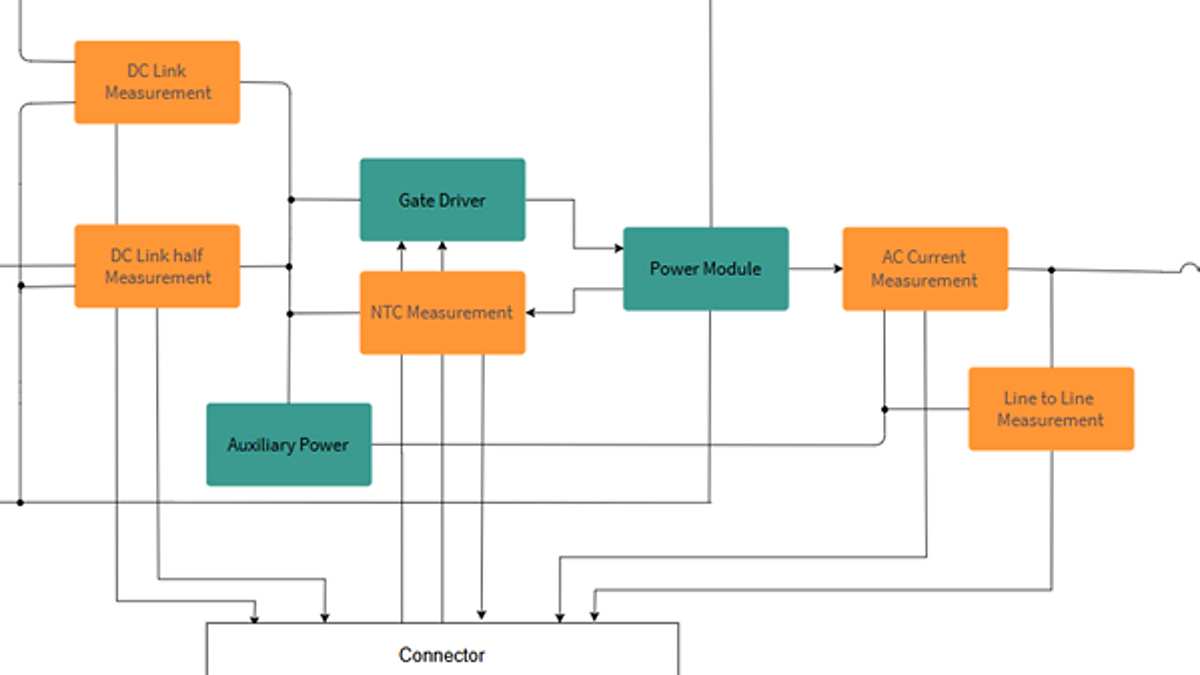

EVAL-F3L8MXTR12C2M2_P

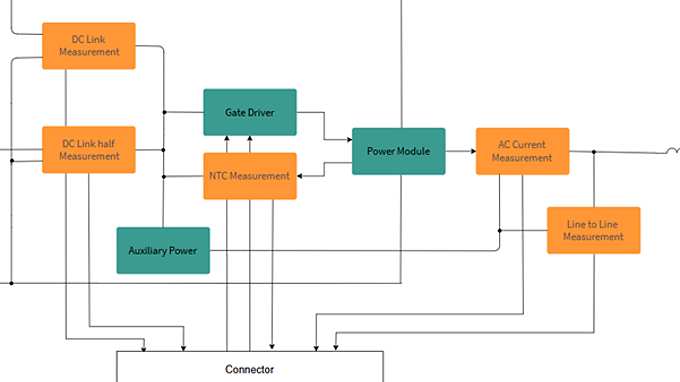

EVAL-F3L8MXTR12C2M2_P
  • AC output voltage type
    3L AC
  • 主板类型
    Evaluation Board
  • 产品名称
    EVAL-F3L8MXTR12C2M2_P
  • 传感器
    Current
  • 供电电压
    24 V
  • 子应用程序
    Fuell-cell DC-DC boost converter
  • 安装
    Surface Mount (SMD), THT
  • 工作电压
    800 V
  • 应用
    Fuel-cell DC-DC boost converter, EV charging
  • 拓扑结构
    3-level
  • 接口
    PLECS RT
  • 板载外围设备
    Power Supply, Current sense, NTC
  • 目标应用程序
    EV Charger
  • 硬件兼容性
    PLECS RT BOX
  • 系列
    CoolSiC™ MOSFET
  • 认证标准
    Industrial
  • 输入信号电压
    24 V
  • 输入类型
    DC
  • 输出电压类型
    AC
  • 输出电流
    150 A
OPN
EVALF3L8MXTR12C2M2PTOBO2
产品状态 on request
英飞凌封装名称 --
封装名 N/A
封装尺寸 1
封装类型 BLISTER TRAY
湿度 N/A
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 on request
英飞凌封装名称 --
封装名 -
封装尺寸 1
封装类型 BLISTER TRAY
湿度 -
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
This single-phase NPC2 active front end evaluation board enables the fast testing of Infineon products for hardware developers. As a fully functional hardware building block with measurements features, it can be fully integrated for system evaluation purposes.

特性

  • Single-phase active front end eval board
  • Easy2C 3-level CoolSiC 1200 V .XT
  • Gate driver supply +15V/+18V and -3V/-5V
  • Reinforced analog measurement functions
  • Reinforced power stage control
  • Independent low voltage supply
  • Various control interfaces

产品优势

  • Easy-to-use hardware for DPT evaluation
  • Low inductive 3L PFC design
  • Up to 60 kHz in hard switching
  • 200°C overload operation

Bill of Material
