PSOC™ Control C3M6 Motor Drive Control Card

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSC3M6_CC2
KIT_PSC3M6_CC2


产品详情

  • CAPSENSE™
    No
  • GPIO/扩展板兼容性
    MADK
  • 主板类型
    Evaluation Kit
  • 传感器
    Hall sensors, Encoders
  • 内核
    ARM Cortex M33
  • 器件
    PSC3M6GES3AHQ1
  • 外部存储器
    None
  • 拓扑
    N/A
  • 无线网络标准
    N/A
  • 目标应用程序
    Motor Control & Drives
  • 硬件兼容性
    MADK Power boards
  • 系列
    PSOC Control C3
  • 编程器/调试器
    SEGGER J-Link Lite
  • 蓝牙标准
    N/A
  • 质量等级
    Industrial
  • 软件支持
    ModusToolbox™
  • 软件生态系统
    ModusToolbox™
  • 输入类型
    DC
  • 连接
    N/A

推荐的
OPN
KITPSC3M6CC2TOBO1
产品状态 active and preferred
英飞凌封装名称 LG-MADK-1
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes

产品状态
Active
英飞凌封装名称 LG-MADK-1
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准
The PSOC™ Control C3M6 CC2 motor control kit is an evaluation board designed to help engineers develop PSOC™ Control C3 based motor control solutions. A suitable power stage can be quickly added using MADK (M1/M3/M5) boards or the 100-pin HD connector to drive a wide range of motors. It features an isolated onboard debugger and supports multiple device package footprints. CC2 is a subset of the MC1 kit without the power board.

特性

  • PSOC™ Control C3M6 (PSC3M6GES3AHQ1)
  • Supports MADK power boards (M1, M3, M5)
  • Supports 100-pin HD connector interface
  • On-board debugger (SEGGER J-Link LITE)
  • 2 User LEDs, 1 Debug LED, and 1 COM LED
  • Selectable 3.3 V or 5 V analog signals
  • 2 User switches and 2 potentiometers
  • Supports multiple package footprints
  • 4x Hall sensor and encoder interfaces
  • USB Full-Speed device interface

产品优势

  • Accelerate motor control development
  • Supports different motor power ratings
  • Sensored or sensorless FOC applications
  • Evaluate and control up to four motors
  • Reduce time with a ready-to-use platform
  • Speed up development with code examples

Bill of Material

文档

设计资源

图表

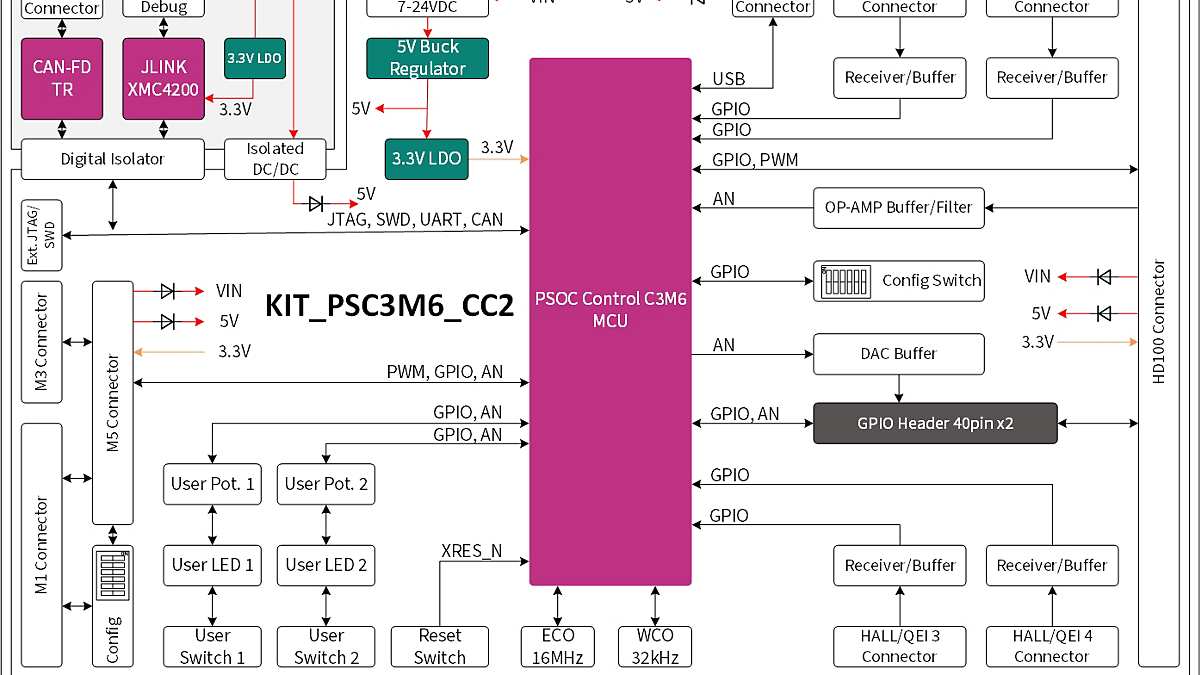

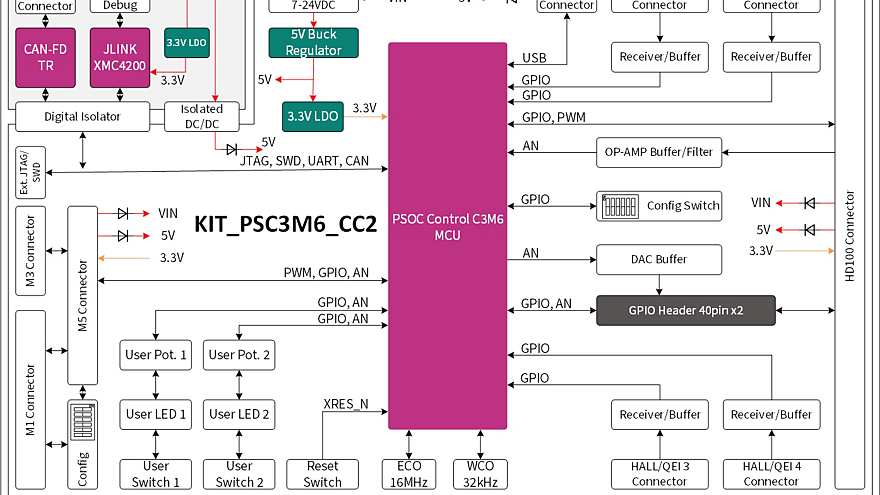

KIT_PSC3M6_CC2 Block Diagram
KIT_PSC3M6_CC2 Block Diagram
KIT_PSC3M6_CC2 Block Diagram KIT_PSC3M6_CC2 Block Diagram KIT_PSC3M6_CC2 Block Diagram

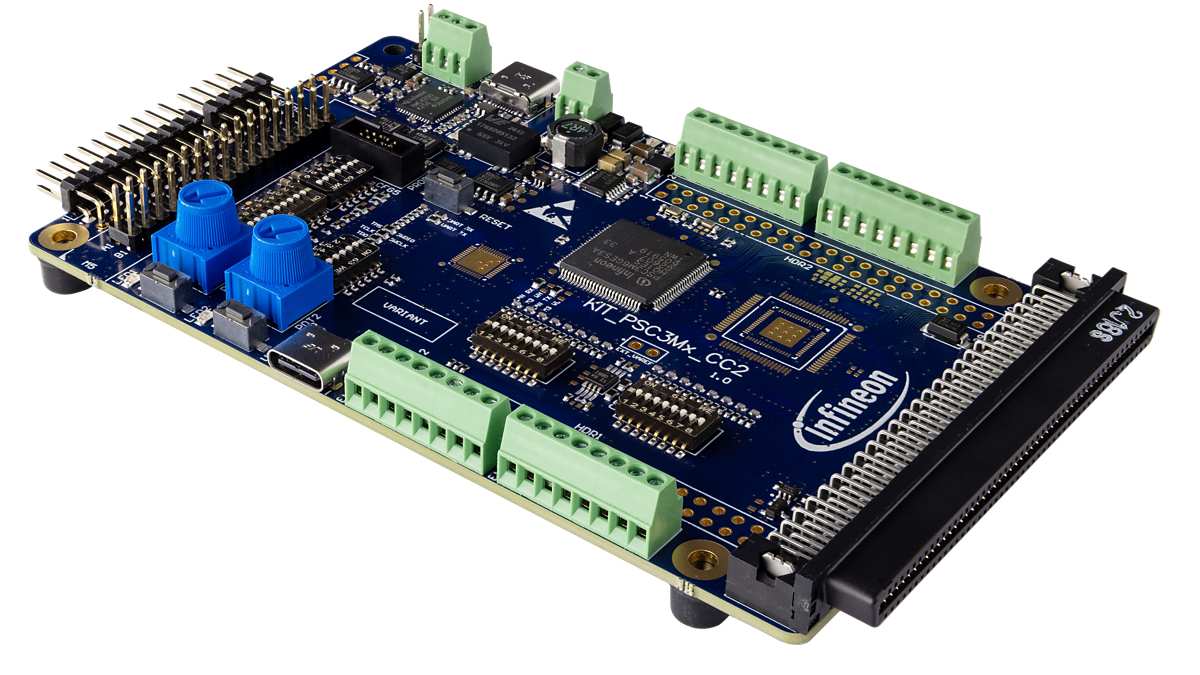

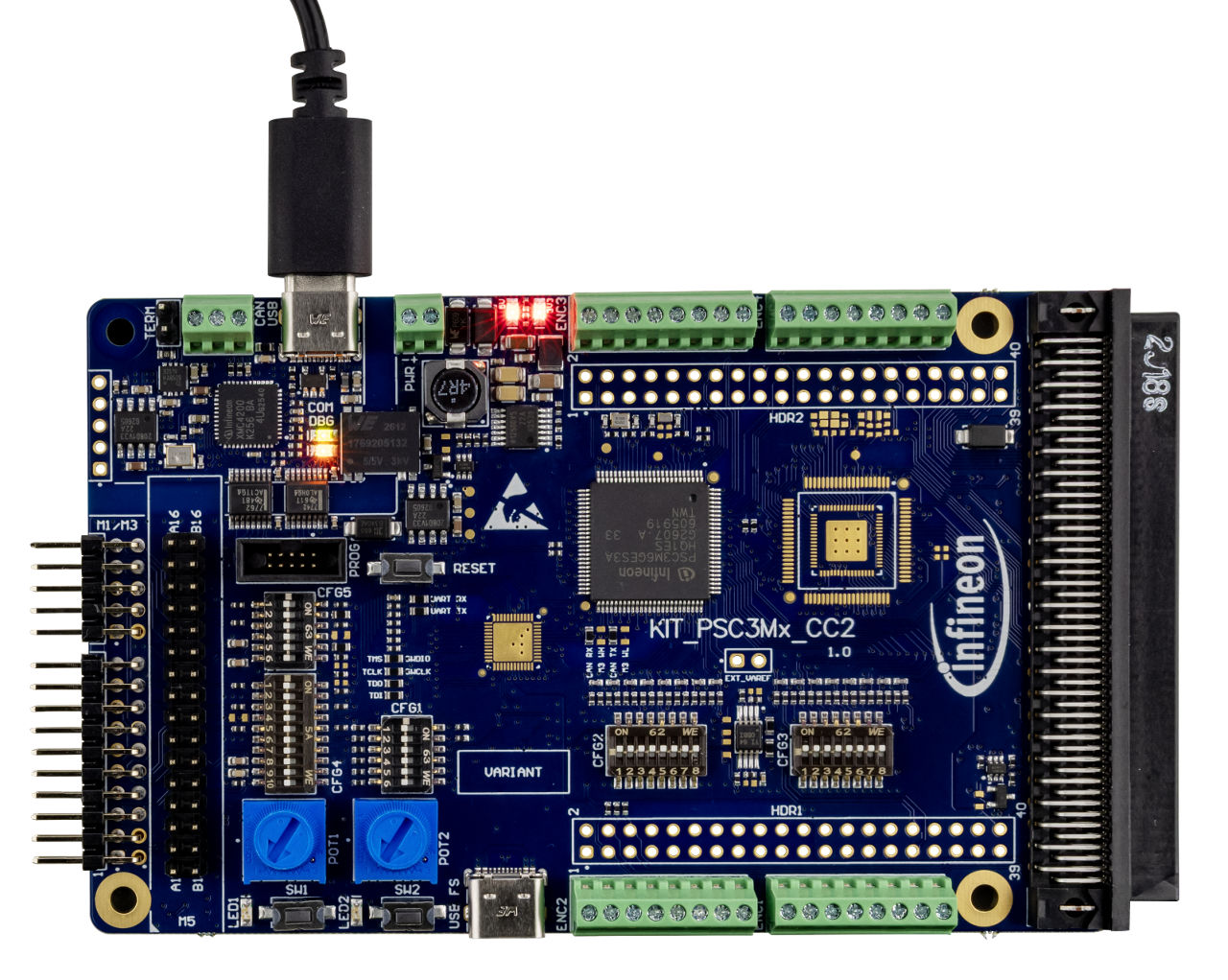

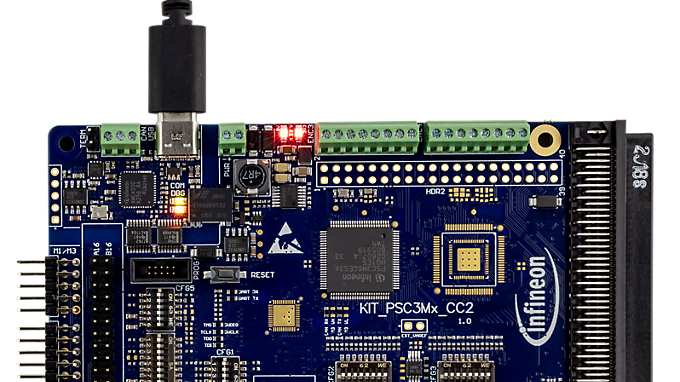

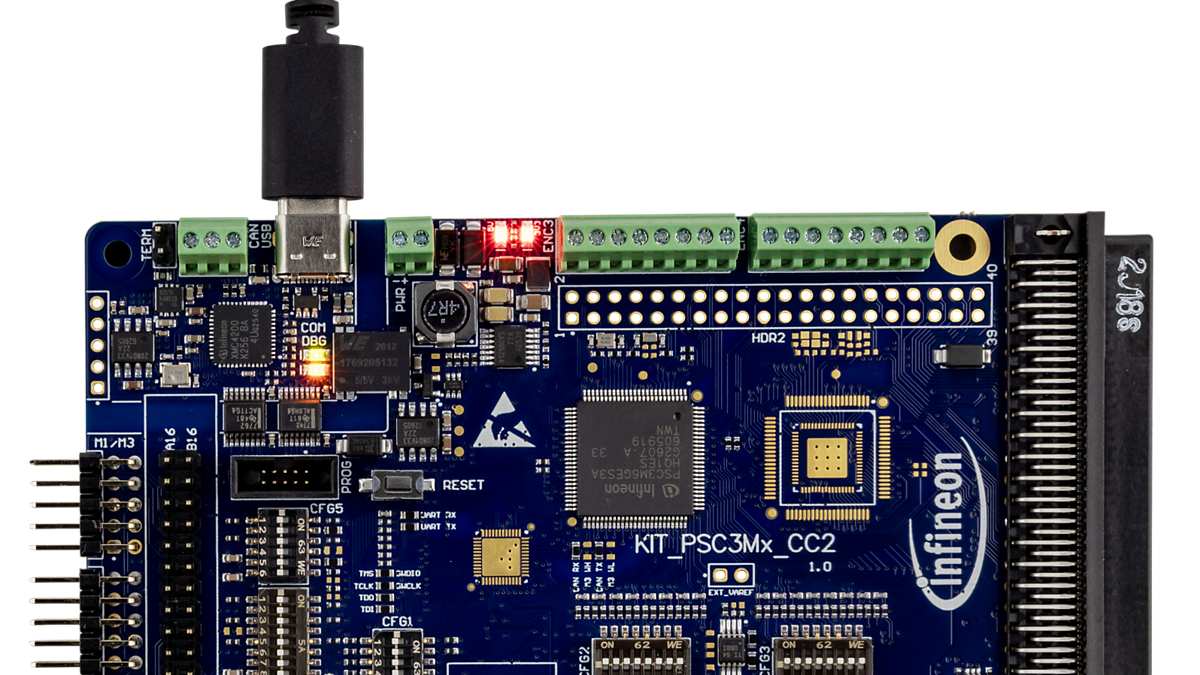

KIT_PSC3M6-CC2 - Main Picture KIT_PSC3M6-CC2 - Main Picture KIT_PSC3M6-CC2 - Main Picture
