Motor-Integrated servo drive, powered by CoolSiC™ MOSFET 1200 V G2 in Q-DPAK half-bridge package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-SMD5KIMSQM2INV
REF-SMD5KIMSQM2INV

商品详情

  • Pout
    6500 W
  • 主板类型
    Reference Board
  • 产品名称
    REF-SMD5KIMSQM2INV
  • 供电电压
    24 V
  • 工作电压 范围
    350 V 至 800 V
  • 拓扑结构
    3-Phase - 2 Level
  • 目标应用程序
    Industrial Drives
  • 系列
    CoolSiC™ MOSFET, EiceDRIVER™, Gate Driver
  • 认证标准
    Industrial
  • 输入类型
    DC
推荐的
OPN
REFSMD5KIMSQM2INVTOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 No
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
This SiC servo drive inverter design combines efficient top-side cooling of discrete Q-DPAK half-bridge packages with Infineon’s advanced CoolSiC™ MOSFET G2 technology, enabling compact and cost-effective motor-integrated servo drive solutions with reduced complexity and increased efficiency.

特性

  • 6 kW 3-phase motor-integrated drive
  • For 350 – 800 V DC input voltage
  • Top-side cooled approach with Q-DPAK
  • Single-board compact solution
  • CoolSiC™ MOSFET 1200 V G2 technology
  • Isolated EiceDRIVER™ with DESAT

产品优势

  • Ultra-compact, minimized footprint
  • Lower cost via simplified assembly
  • Better electrical efficiency
  • Passive cooling; small heatsink
  • HW based short-circuit protection

Bill of Material

文档

文档

设计资源

图表

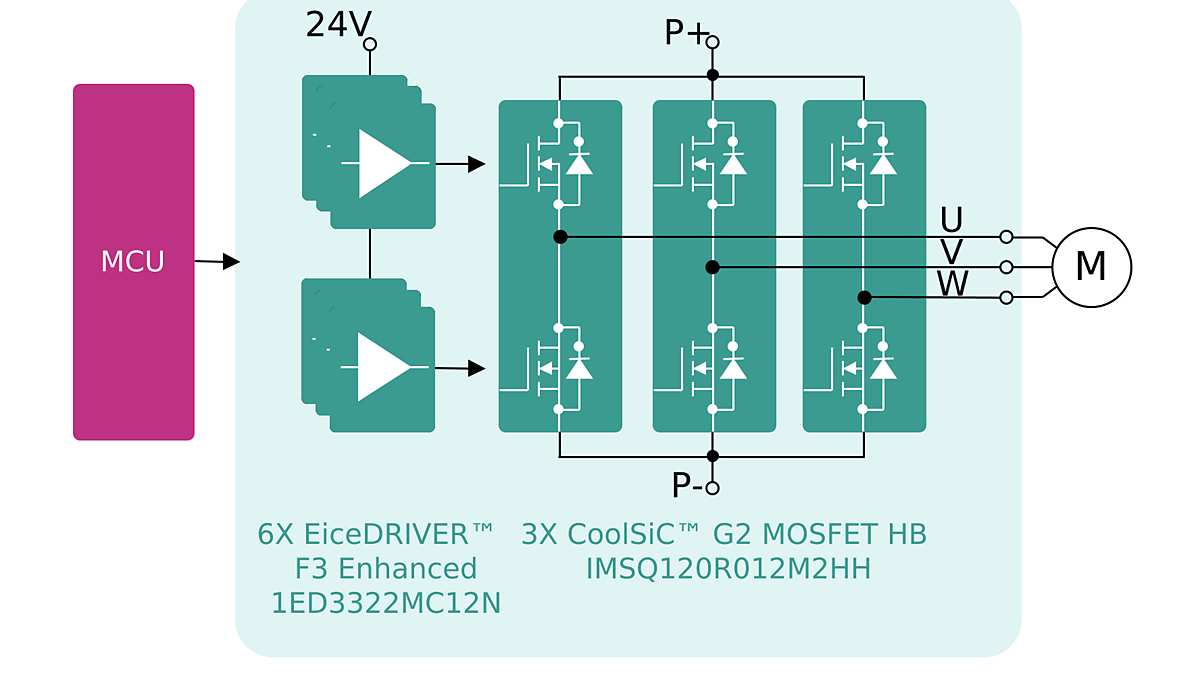

REF-SMD5KIMSQM2INV Diagram

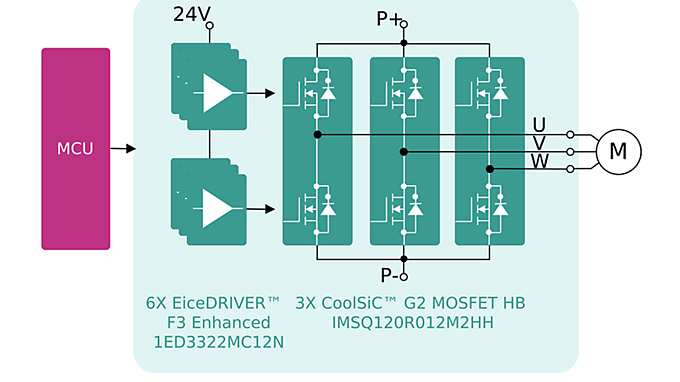

REF-SMD5KIMSQM2INV Diagram
