RIC70849EVAL1

Single phase buck converter with integrated circuits optimized for GaN HEMTs
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

RIC70849EVAL1
RIC70849EVAL1
User manual


产品详情

  • 主板类型
    Evaluation Board
  • 拓扑
    Buck
  • 描述
    Single phase buck controller with rad hard MOSFETs for 1.0 V/ 40.0 A FPGA core rail
  • 目标应用程序
    Space applications
  • 输入类型
    DC

OPN
产品状态 coming soon
英飞凌封装名称 --
封装名 N/A
封装尺寸 N/A
封装类型 N/A
湿度 N/A
防潮封装 N/A
无铅 No
无卤素 No
符合RoHS标准 No

产品状态 coming soon
英飞凌封装名称 --
封装名 -
封装尺寸 0
封装类型
湿度 -
防潮封装
无铅
无卤素
符合 RoHS 标准

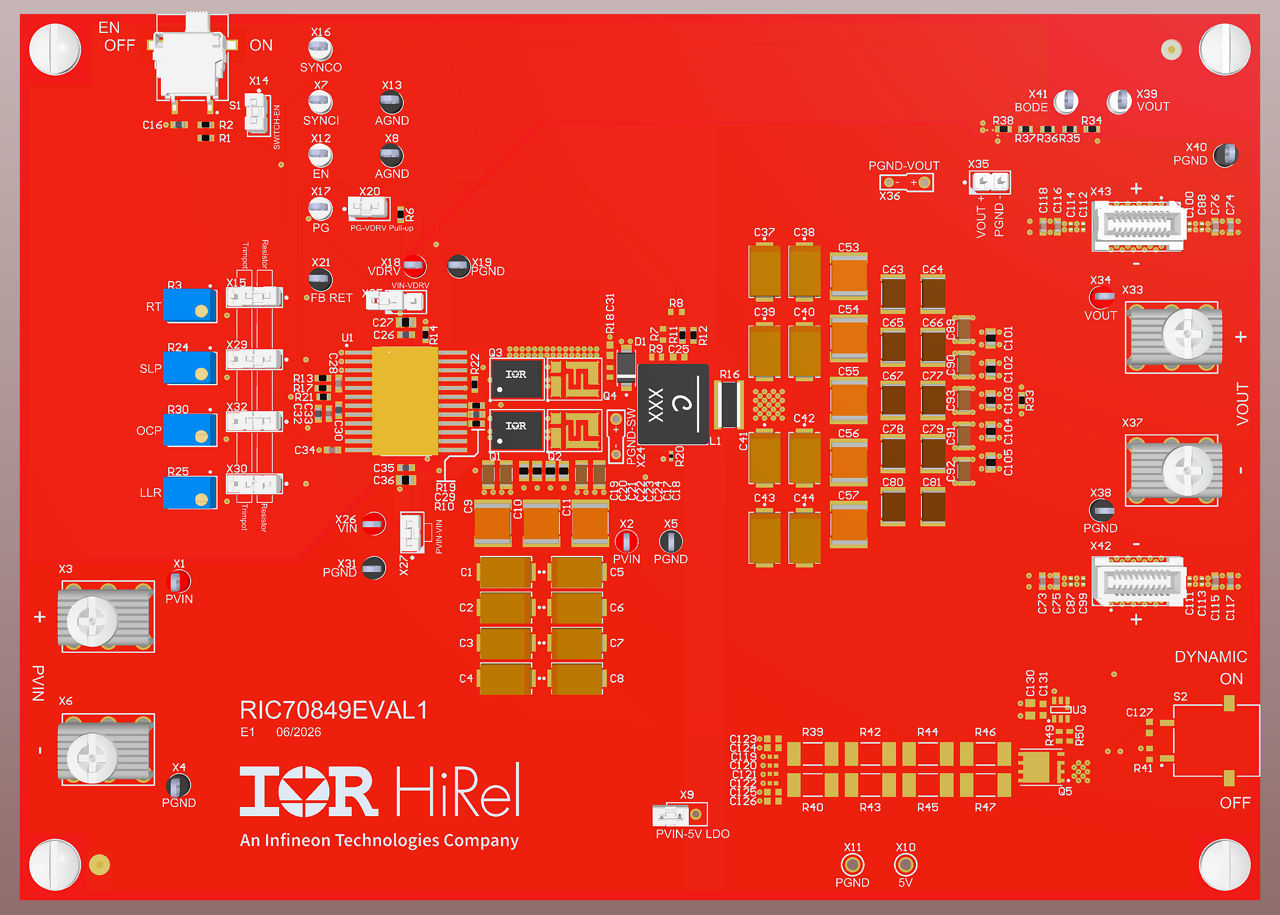

RIC70849 is a buck controller with integrated gate drivers and is intended for use in DC/DC power conversion applications such as point of load (PoL) rails and optimized for GaN HEMTs. This evaluation board is designed to help the user evaluate RIC70849 with a Schottky Gate GaN HEMT. It comes prepopulated with two 100V RH IG1NT052N10R GaN HEMT.

产品优势

  • Easy power connection
  • Load probe access
  • Load line regulation (LLR) adjustment
  • Overcurrent limit (OCP) adjustment
  • Slope compensation (SLP) adjustment
  • Switching frequency (RT) adjustment
  • Large Inductor Footprint
  • On-board dynamic load step circuit
  • Optional DCR or current sense resistor
  • Optimized for point-of-load applications
