TLX49012 EVAL KIT
新品
现货，推荐
符合RoHS标准

TLX49012 EVAL KIT

新品
Evaluation kit for XENSIV™ TLx49012 angle sensors in end-of-shaft and out-of-shaft automotive magnetic applications – plug and play
User manual
Video

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLX49012 EVAL KIT
TLX49012 EVAL KIT
User manual


推荐的
OPN
TLX49012EVALKITTOBO1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 N/A
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes

产品状态
Active
英飞凌封装名称 N/A
封装名 -
封装尺寸 1
封装类型 CONTAINER
湿度 NA
防潮封装 NON DRY
无铅
无卤素
符合 RoHS 标准

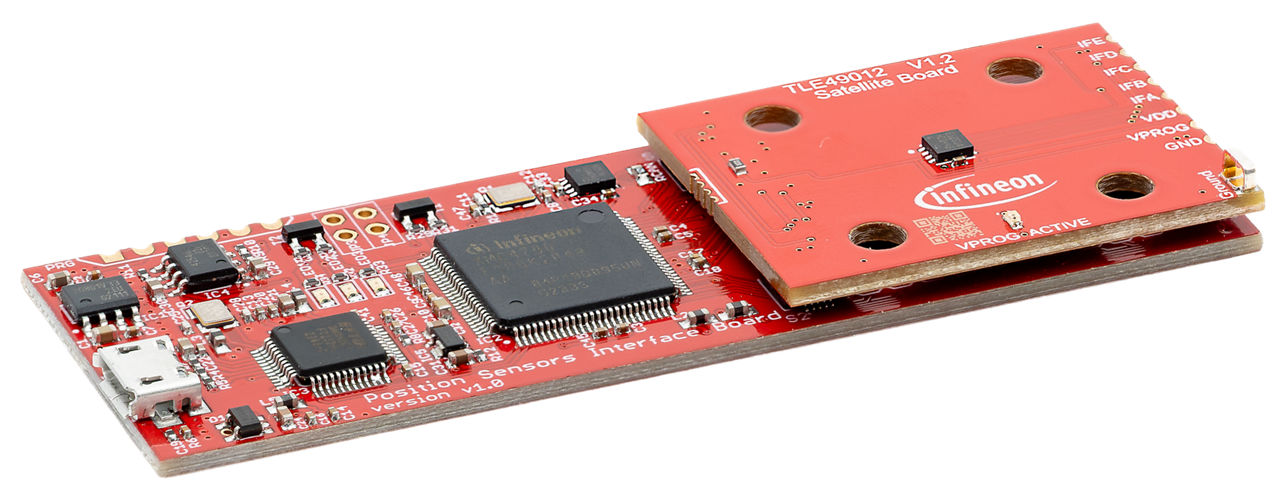

The XENSIV™ TLX49012 evaluation kit enables rapid evaluation of digital angle sensing for automotive motor control and position measurement applications. Featuring an XENSIV™ TLE49012-S0001 sensor board, XMC4700 microcontroller platform, rotary knob add-on, and intuitive GUI, it supports end-of-shaft and off-axis magnetic sensing configurations, enabling fast plug-and-play prototyping and testing.

特性

  • Evaluate TLE49012-S0001 angle sensor
  • XMC4700 microcontroller platform
  • End-/out-of-shaft positioning
  • Dedicated evaluation GUI
  • Data logging and visualization
  • Sensor configuration support

产品优势

  • Rapid plug-and-play evaluation
  • Quick and easy sensor configuration
  • Fast GUI-based development
  • Easy data visualization
  • Accelerated design-in process
  • Save and reuse configurations

Bill of Material
