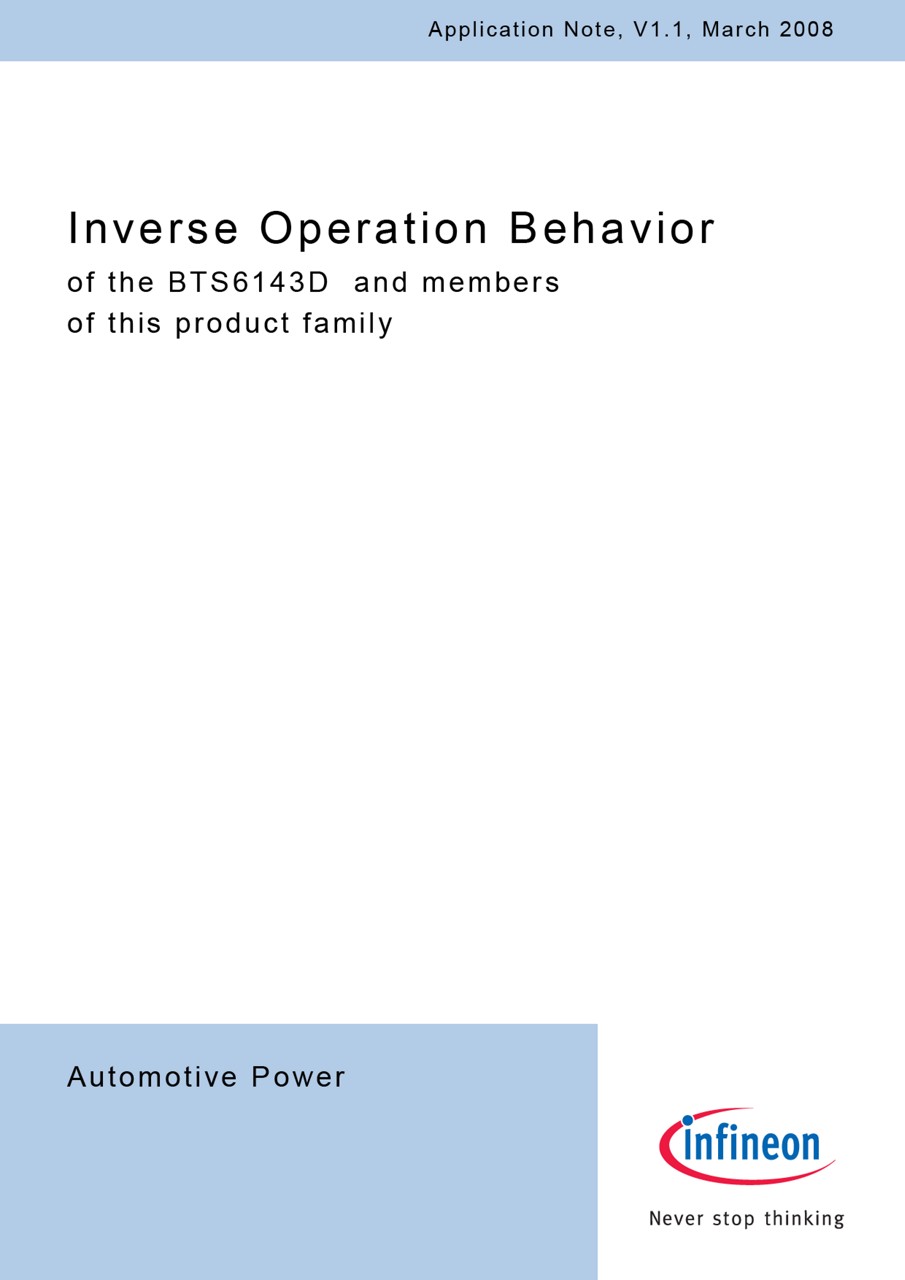

Inverse Operation Behavior

This Application Note provides information about the specific behavior of the BTS6143D and its family members for the special operation mode ìinverse operationî. The application note describes first the specific characteristics of the BTS6143D and its family members. It describes the special operation mode ìinverse operationî. It outlines the behavior of the BTS6143D diagnosis and power stage and provides background information for the special behavior. Finally this application note provides further information regarding the impact of inverse operation effects and provides hints for possible counter measures on device and system level.

•
160.16 KB
•
10/04/2017
