请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准
无铅

AUIRS2191S

停产
Automotive Grade High Side and Low Side Driver in a 16 Lead SOIC Narrow Package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRS2191S
AUIRS2191S

商品详情

  • VBS UVLO (Off)
    8.2 V
  • VBS UVLO (On)
    8.9 V
  • Turn Off Propagation Delay
    90 ns
  • Package
    16 Lead
  • Turn On Propagation Delay
    90 ns
  • Voltage Class
    600 V
  • Qualification
    Automotive
  • Output Current (Source)
    3.5 A
  • Output Current (Sink)
    3.5 A
  • Channels
    2
  • Configuration
    Half Bridge
  • Isolation Type
    Functional levelshift
OPN
AUIRS2191STR
产品状态 discontinued
英飞凌封装名称 PG-DSO-16
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称 PG-DSO-16
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准

应用

图表

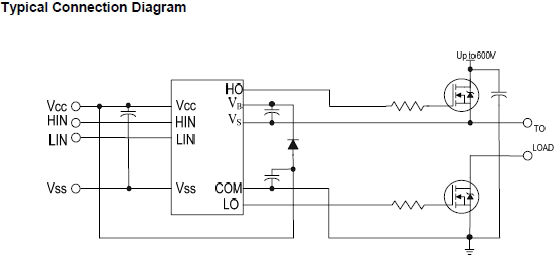

tc-auirs2191s
tc-auirs2191s
tc-auirs2191s tc-auirs2191s tc-auirs2191s

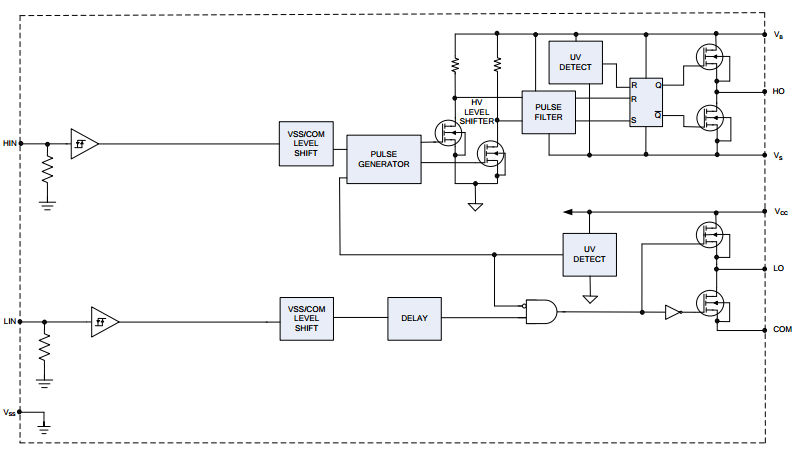

fbd-auirs2191s fbd-auirs2191s fbd-auirs2191s
