BSF035NE2LQ
BSF035NE2LQ

商品详情

  • Ciss
    1400 pF
  • Coss
    630 pF
  • ID (@25°C) max
    69 A
  • IDpuls max
    276 A
  • Ptot max
    28 W
  • QG (typ @10V)
    19 nC
  • QG (typ @4.5V)
    9.1 nC
  • RDS (on) (@10V) max
    3.5 mΩ
  • RDS (on) (@4.5V) max
    4.6 mΩ
  • RDS (on) (@4.5V LL) max
    4.6 mΩ
  • RthJC max
    1 K/W
  • Rth
    1 K/W
  • VDS max
    25 V
  • VGS(th)
    1.2 V to 2 V
  • Mounting
    SMD

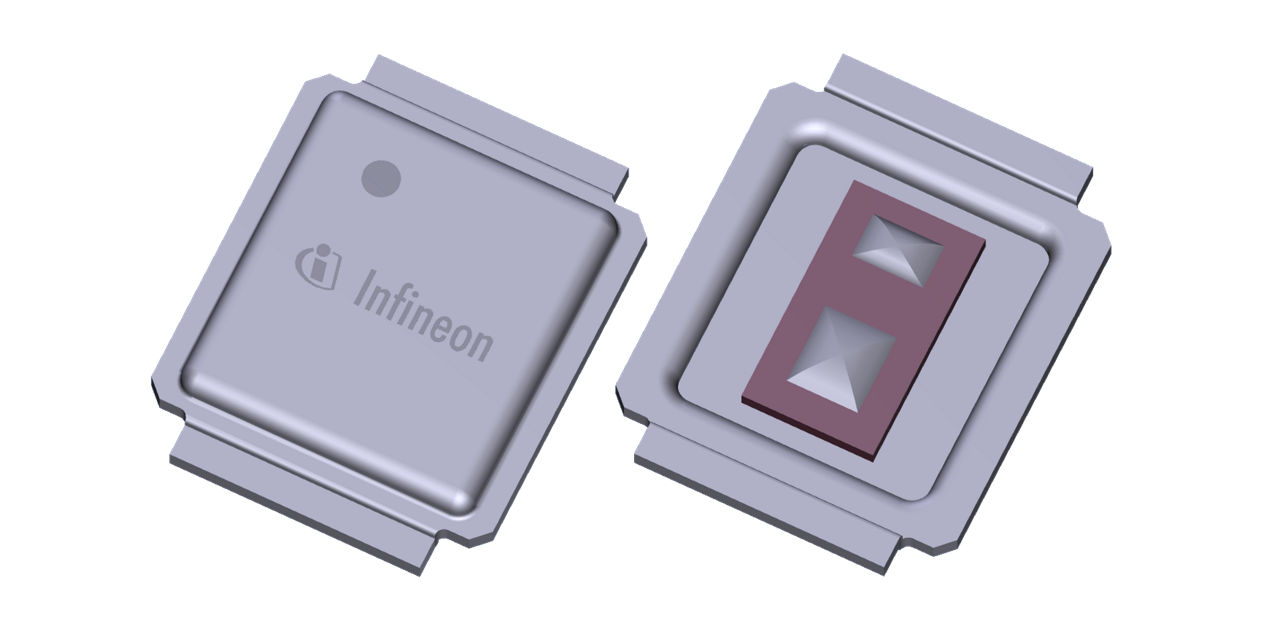

  • Package
    DirectFET(S)
  • Operating Temperature
    -40 °C to 150 °C
  • Micro-stencil
    IRF66SQ-25
  • Polarity
    N
  • Budgetary Price €/1k
    0.32
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:
凭借 OptiMOS ™ 25V 产品系列,英飞凌为分立功率 MOSFET 和系统级封装的功率密度和能效设立了新标准。超低栅极和输出电荷,加上小尺寸封装中的最低导通电阻,使 OptiMOS ™ 25V 成为满足服务器、数据通信和电信应用中电压调节器解决方案苛刻要求的最佳选择。适用于半桥配置(功率级 5x6)。

产品优势

  • 通过减少多相转换器中的相数来节省整体系统成本
  • 降低功率损耗并提高所有负载条件下的效率
  • 使用最小封装(如 CanPAK ™ 、S3O8 或系统级封装解决方案)节省空间
  • 最大限度地降低系统中的 EMI,使外部缓冲网络变得过时,并使产品易于设计
