在产
符合RoHS标准

BSZ900N15NS3 G

每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSZ900N15NS3 G
BSZ900N15NS3 G
每件.

商品详情

  • Ciss
    380 pF
  • Coss
    46 pF
  • ID (@25°C) max
    13 A
  • IDpuls max
    52 A
  • Ptot max
    38 W
  • QG (typ @10V)
    5 nC
  • RDS (on) (@10V) max
    90 mΩ
  • Rth
    3.3 K/W
  • VDS max
    150 V
  • VGS(th)
    3 V

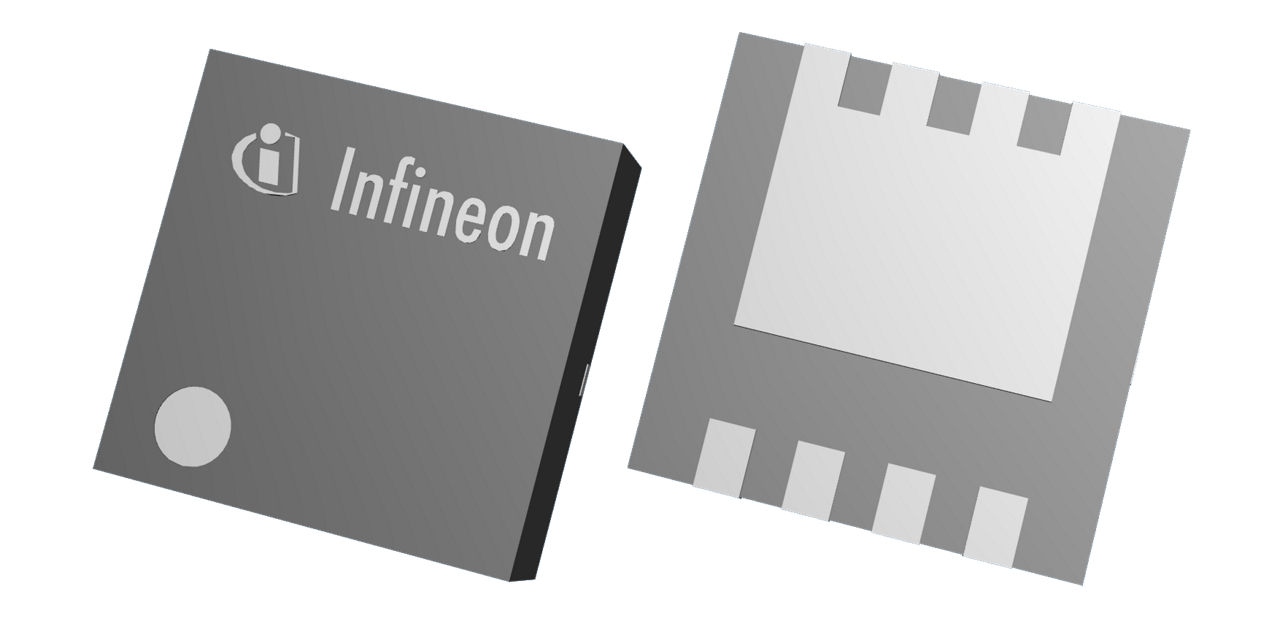

  • Package
    PQFN 3.3 x 3.3
  • Operating Temperature
    -55 °C to 150 °C
  • Polarity
    N
  • Budgetary Price €/1k
    0.33
OPN
BSZ900N15NS3GATMA1
产品状态 active
英飞凌封装名称
封装名 PQFN 3x3
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 PQFN 3x3
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
与排名第二的竞争对手相比,150V OptiMOS ™的 R DS(on) 降低了 40%,品质因数 (FOM) 降低了 45%。这一重大改进开辟了新的可能性,例如从引线封装转向 SMD 封装或用一个 OptiMOS ™部件有效地替换两个旧部件。

特性

  • 卓越的开关性能
  • 全球最低的 R DS(on)
  • 低 Q g 和 Q gd
  • 卓越的栅极电荷
  • 符合 RoHS 标准 - 无卤素
  • MSL1 级

产品优势

  • 环保
  • 提高效率
  • 最高功率密度
  • 所需并联更少
  • 最小的电路板空间消耗
  • 易于设计的产品
