D711N65T

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D711N65T
D711N65T

商品详情

  • I(FSM) max
    10500 A
  • IFAVM/TC [A/°C] (@180° el sin)
    790/100
  • IFAVM/Tc
    790/100 (180 ° el sin)
  • IFSM [A] (@10ms, Tvj max)
    10500
  • rT [mΩ] (@Tvj max) max
    0.87
  • RthJC [K/kW] (@180° el sin) max
    31.5
  • Tvj [°C] max
    160
  • VF/IF [V/kA] (@Tvj max)
    1.77/1.2
  • VRRM [V]
    6500
  • VRRM max
    6500 V
  • VT0 [V] (@Tvj max) max
    0.84
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    550
  • Clamping force [kn]
    10 to 16
  • Housing
    Disc dia 58mm height 26mm / Ceramic
  • Configuration
    Rectifier Diodes
OPN
D711N65TXPSA1
产品状态 active and preferred
英飞凌封装名称 BG-D5826K-1
封装名 N/A
包装尺寸 6
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 BG-D5826K-1
封装名 -
包装尺寸 6
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

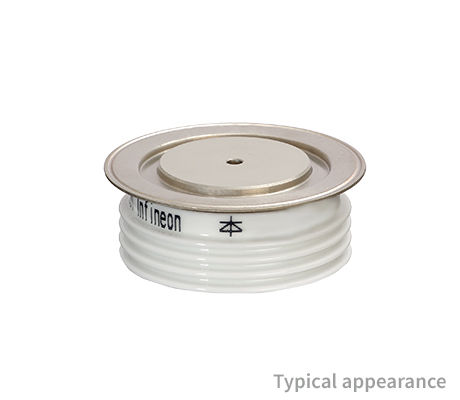

D711N 整流二极管圆盘组装在高可靠性、坚固且密封的陶瓷外壳中,直径为 58 毫米,高度为 26 毫米。

特性

  • 完全阻断能力 50/60 Hz*
  • 高直流阻断稳定性
  • 高浪涌电流能力
  • 密封陶瓷封装
  • 高外壳不断裂电流
  • *适用于较宽的温度范围
