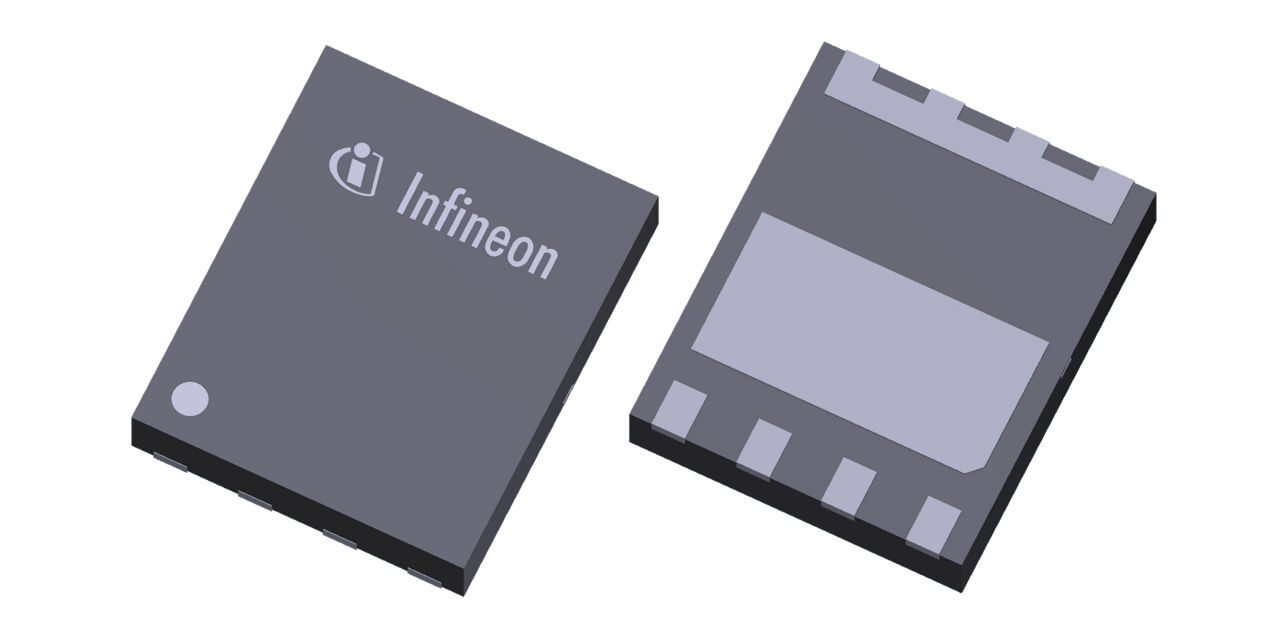

IGLR60R340D1

停产
600 V CoolGaN ™ e-mode 功率晶体管,实现极致效率和可靠性

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

商品详情

  • ID (@ TA=25°C) max
    8 A
  • IDpuls (@25°C) max
    12.2 A
  • QG
    1.2 nC
  • RDS (on) (typ)
    270 mΩ
  • VDS max
    600 V
  • Mounting
    SMT
  • Generation
    ≤ G3
OPN
IGLR60R340D1XUMA1
产品状态 discontinued
英飞凌封装名称
封装名 N/A
包装尺寸 5000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
CoolGaN ™ 600 V 系列经过全面的 GaN 定制认证,远远超出现有标准,是最高应用可靠性的完美选择。

特性

  • E-mode HEMT – 通常处于关闭状态
  • 超快速开关
  • 无反向恢复电荷
  • 具有反向传导能力
  • 低栅极电荷、低输出电荷
  • 卓越的换向坚固性
  • 符合 JEDEC 标准 (JESD47、JESD22)
  • 底部冷却

产品优势

  • 提高系统效率
  • 提高功率密度
  • 实现更高的工作频率
  • 降低系统成本
  • 降低 EMI
