现货,推荐
符合RoHS标准

IPD048N06L3 G

多个 OPN 可用
每件.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

商品详情

  • Ciss
    6300 pF
  • Coss
    1100 pF
  • ID (@25°C) max
    90 A
  • IDpuls max
    360 A
  • Ptot max
    115 W
  • QG (typ @4.5V)
    37 nC
  • RDS (on) (@10V) max
    4.8 mΩ
  • RDS (on) (@4.5V) max
    8.2 mΩ
  • RDS (on) (@4.5V LL) max
    8.2 mΩ
  • Rth
    1.3 K/W
  • VDS max
    60 V
  • VGS(th)
    1.7 V

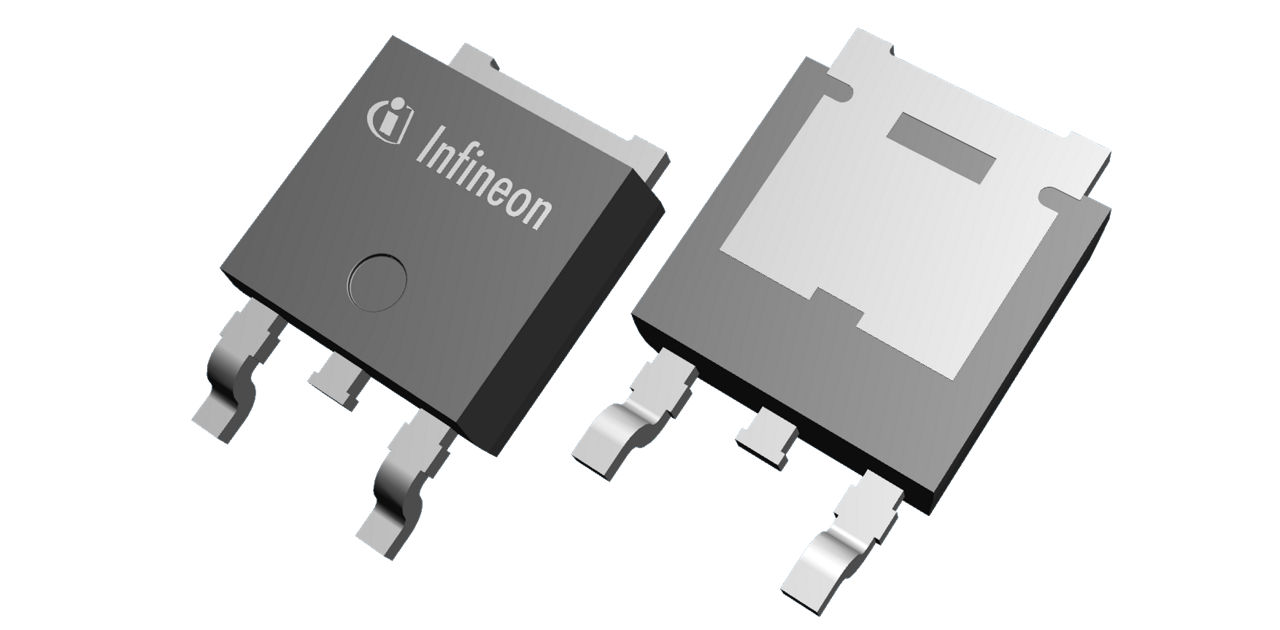

  • Package
    DPAK (TO-252)
  • Operating Temperature
    -55 °C to 175 °C
  • Polarity
    N
  • Budgetary Price €/1k
    0.37
OPN
IPD048N06L3GATMA1 IPD048N06L3GBTMA1
产品状态 active and preferred discontinued
英飞凌封装名称
封装名 DPAK DPAK
包装尺寸 2500 2500
包装类型 TAPE & REEL TAPE & REEL
湿度 1 N/A
防潮包装 NON DRY NON DRY
无铅 No No
无卤素 Yes No
符合RoHS标准 Yes Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 DPAK
包装尺寸 2500
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

产品状态 discontinued
英飞凌封装名称
封装名 DPAK
包装尺寸 2500
包装类型 TAPE & REEL
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
OptiMOS ™ 60V 是服务器、台式机和平板电脑充电器等开关模式电源 (SMPS) 中同步整流的完美选择。此外,这些设备还可用于广泛的工业应用,包括电机控制、太阳能微型逆变器和快速开关 DC-DC 转换器。

特性

  • 电荷 x RDS(on)乘积 (FOM)
  • 低导通电阻 RDS(on)
  • 快速开关应用的理想选择
  • 符合 RoHS 标准 - 无卤素
  • MSL1 级

产品优势

  • 最高的系统效率
  • 更少的并联需求
  • 更高的功率密度
  • 降低系统成本
  • 极低的电压过冲

应用
