请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准
无铅

IR1155S

停产
可调频率单周期控制PFC IC

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

商品详情

  • ICC max
    13 mA
  • IQ
    175 µA
  • VCC
    12 V to 20 V
  • Package
    8-lead SOIC
  • Applications
    Desktop SMPS, Server SMPS, AC-DC adapters, LCD TV, PDP TV, Telecom SMPS
  • Moisture Sensitivity Level
    2
  • Output Current Type
    MOSFET Gate Driver
OPN
IR1155STRPBF
产品状态 discontinued
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准

产品优势

  • 采用 IR 专有“单周期控制”的 PFC IC
  • 连续传导模式升压型 PFC 可编程开关频率 (50k-200kHz)
  • 平均电流模式控制
  • 输出过压保护
  • 开环保护
  • 逐周期峰值电流限制
  • VCC欠压锁定
  • 可编程软启动 微功率启动
  • 用户启动微功耗“睡眠模式”
  • OVP/EN 引脚内部滤波,可实现更高的抗噪能力
  • 1.5A峰值栅极驱动
  • 闩锁免疫和 ESD 保护

应用

图表

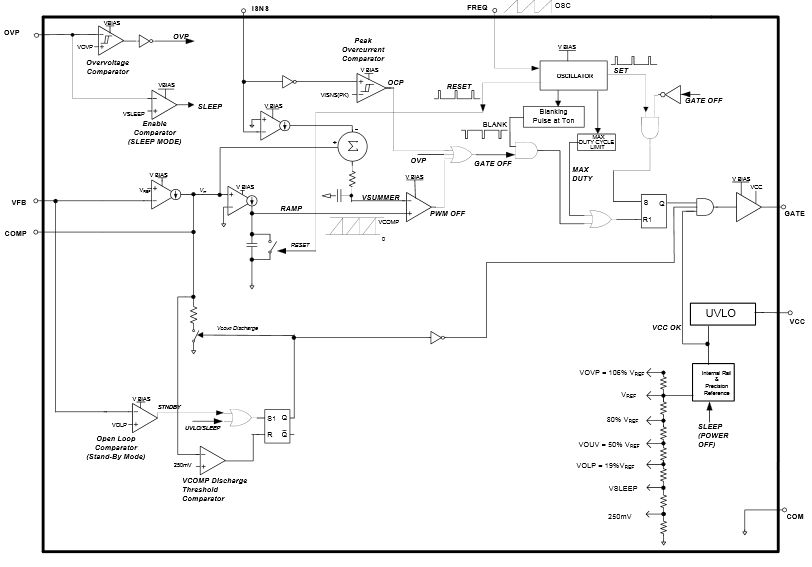

fbd-ir1155s
fbd-ir1155s
fbd-ir1155s fbd-ir1155s fbd-ir1155s

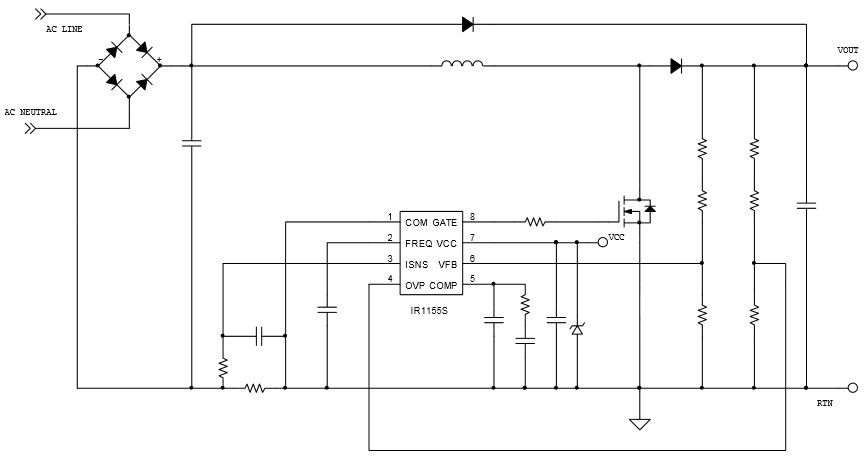

tc-ir1155s tc-ir1155s tc-ir1155s
