不建议用于新设计
符合RoHS标准

SPB18P06P G

P沟道增强模式场效应晶体管 (FET),-60V,D2PAK
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SPB18P06P G
SPB18P06P G
每件.

商品详情

  • Ciss
    690 pF
  • Coss
    230 pF
  • ID max
    -18.6 A
  • IDpuls max
    -74.8 A
  • Ptot max
    80 W
  • QG (typ @10V)
    18.6 nC
  • RDS (on) (@10V) max
    130 mΩ
  • RthJC max
    1.85 K/W
  • Rth
    1.85 K/W
  • VDS max
    -60 V
  • VGS(th)
    -3 V
  • Mounting
    SMD
  • Package

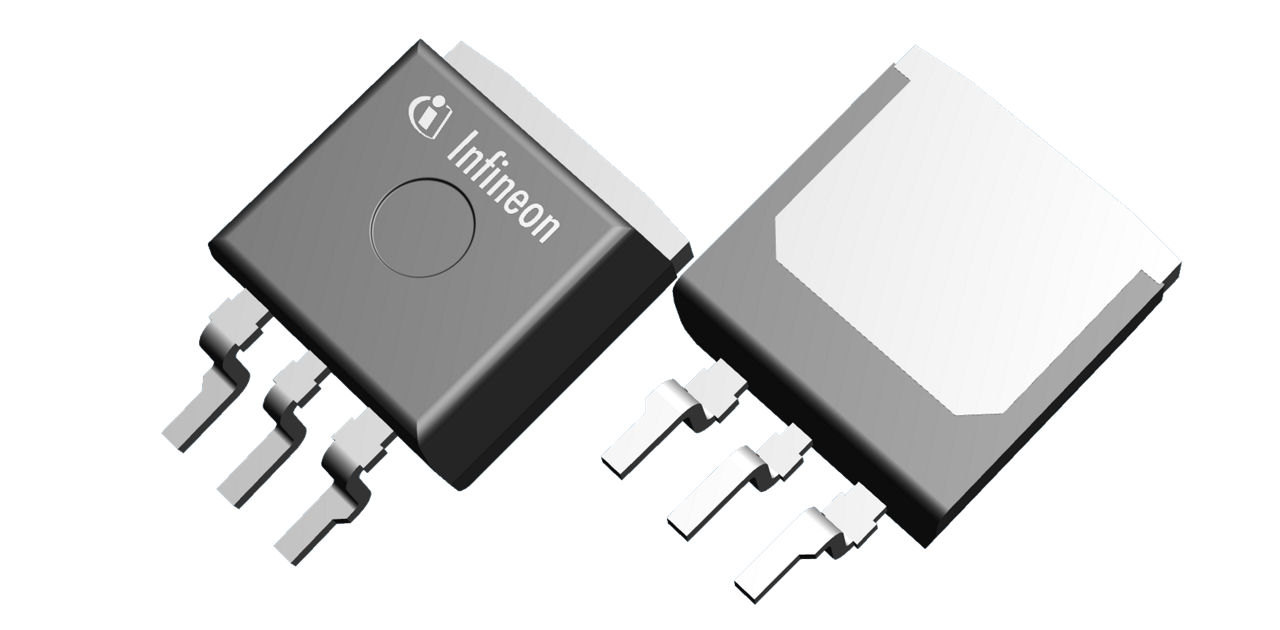

    D2PAK (TO-263)
  • Operating Temperature
    -50 °C to 175 °C
  • Polarity
    P
  • Mode
    Enhancement
  • Budgetary Price €/1k
    0.41
OPN
SPB18P06PGATMA1
产品状态 not for new design
英飞凌封装名称
封装名 D2PAK
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态 not for new design
英飞凌封装名称
封装名 D2PAK
包装尺寸 1000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
英飞凌高度创新的 OptiMOS ™系列包括 p 通道功率 MOSFET。这些产品始终满足电源系统设计关键规格(例如导通电阻和品质因数特性)的最高质量和性能要求。

特性

  • 增强模式
  • 雪崩额定值
  • 快速开关
  • Dv/dt 额定值
  • 无铅镀铅
符合 RoHS 标准,无卤素
  • 符合 AEC Q101 要求
  • 应用
