SPP03N60S5
SPP03N60S5

商品详情

  • ID (@25°C) max
    3.2 A
  • ID max
    3.2 A
  • IDpuls max
    5.7 A
  • Ptot max
    38 W
  • QG
    12.4 nC
  • RDS (on) max
    1400 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    3.3 K/W
  • Rth
    3.3 K/W
  • VDS max
    600 V
  • VGS(th)
    3.5 V to 5.5 V
  • Mounting
    THT

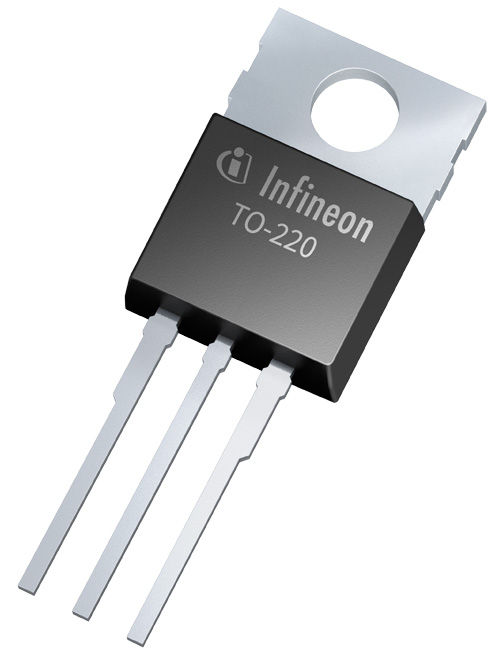

  • Package
    TO-220
  • Operating Temperature min
    -55 °C
  • Polarity
    N
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:

特性

  • 创新高压技术
  • 全球最佳 R TO-251 和 TO-252 中的 DS(on)
  • 超低栅极电荷
  • 周期性雪崩额定值
  • 极高 dv/dt 额定值
  • 超低有效电容
  • 提高跨导
