TDA48410

新品
10 A Synchronous buck regulator using FAST COT control with internal compensation, adjustable current limit, and voltage tracking
数据手册
封装

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

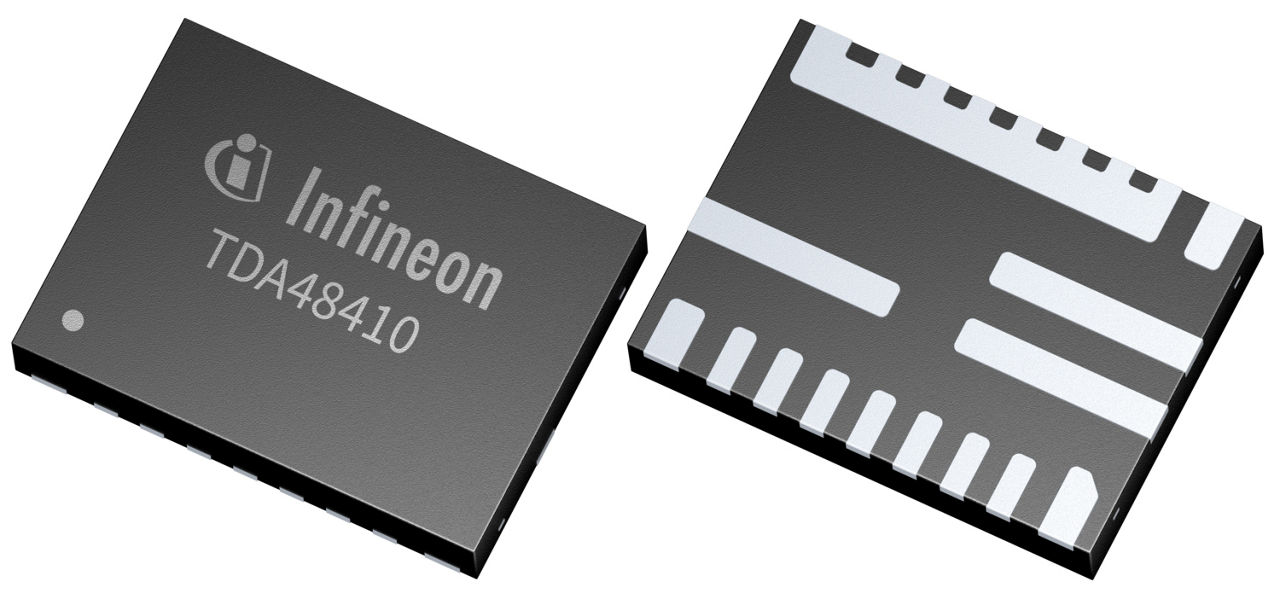

TDA48410
TDA48410
数据手册

商品详情

  • Iout max
    10 A
  • Product Category
    Analog POL
  • Additional Information
    Vref = 0.6 V +/- 0.5%
  • Internal Bias LDO
    Yes
  • Accuracy
    0.5 %
  • Reset
    No
  • Package
    PG-TSNP-21-1
  • Industrial 24V Input
    No
  • Operating Temperature
    -40 °C to 125 °C
  • Switching Frequency
    600 kHz to 1000 kHz, 800 kHz
  • Technology
    FAST Constant On Time
  • Topology
    Buck
  • Simulator
    Tina Model
  • Moisture Sensitivity Level
    MSL2
  • Status Output
    Yes
  • Watchdog
    No
  • Type
    Single phase
  • Family
    Analog DC-DC Voltage regulator
  • Qualification
    Industrial
  • Design Tool
    Tina Model
  • Regulator Type
    Single Output
  • Input Voltage min
    1.65 V
  • Input Voltage
    1.65 V to 6 V
  • Output Voltage
    1 V, 0.6 V to 5 V
  • Number of Outputs
    1
  • Over Voltage Protection
    Yes
  • Early Warning
    No
受到推崇的
OPN
TDA48410AXUMA1 TDA48410XUMA1
产品状态 active and preferred active and preferred
英飞凌封装名称
PG-TSNP-21
PG-TSNP-21
封装名 N/A N/A
包装尺寸 3000 3000
包装类型 TAPE & REEL TAPE & REEL
湿度 2 2
防潮包装 DRY DRY
无铅 Yes Yes
无卤素 Yes Yes
符合RoHS标准 Yes Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
PG-TSNP-21
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准

产品状态
Active
英飞凌封装名称
PG-TSNP-21
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
TDA48410 is a fully integrated 10A buck regulator supporting a wide range of low voltage (<7 Vin) applications. Infineon's FAST COT control simplifies design and achieves excellent transients while maintaining excellent line and load regulation. A comprehensive set of features, including programmable Fsw, soft-start, voltage tracking, protection features (OCP, OVP, UVP, thermal shutdown) enables a versatile, robust, reliable system.

特性

  • Vin range from 1.65 to 6 V with ext Vcc
  • Vout range of 0.6 to 5.0 V
  • No external compensation
  • FCCM and DEM for light load efficiency
  • Programmable Fsw from 1.2 MHz to 2 MHz
  • Voltage tracking with external input
  • Thermally compensated OCP, OVP, UVP
  • Small size: 3 x 4 mm FCOL
  • Pb-free, RoHS2

产品优势

  • Easy to use fast COT PWM engine
  • Accurate output voltage regulation
  • Fast transient response
  • Robust and reliable system
