现货,推荐
符合RoHS标准
无铅

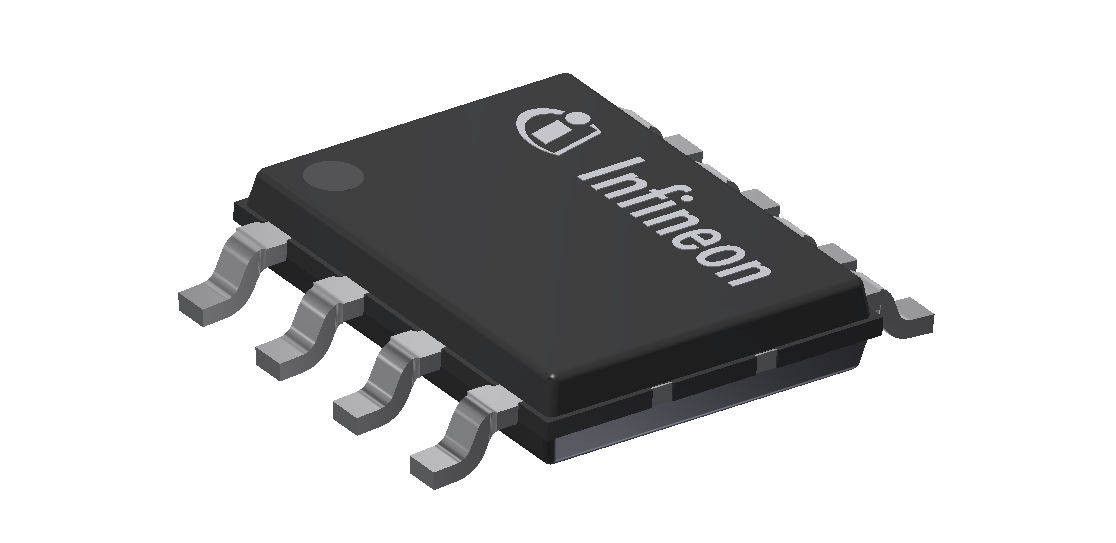

TLE4997A8D

XENSIV ™ - TLE4997A8D 线性霍尔传感器,可编程参数存储在 EEPROM 中
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4997A8D
TLE4997A8D
每件.

商品详情

  • Classification
    ISO 26262-ready
  • Programmable
    yes
  • Package
    SMD
  • Applications
    Linear Hall
  • Interfaces
    Analog
  • Currently planned availability until at least
    2033
  • Budgetary Price €/1k
    2.6
OPN
TLE4997A8DXUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
英飞凌 TLE4997A8D:用于精确角度和位置检测的线性传感器。比例模拟输出电压,非常适合 A/D 转换。具有高压能力和反极性保护的 BiCMOS 技术。16 位 DSP 架构和补偿,可实现整个温度范围和寿命的稳定性。

特性

  • 积分比模拟输出:40 个字符
  • 20 位数字信号处理 (DSP)
  • 数字温度补偿
  • 12 位总分辨率
  • 汽车级温度范围:-40°C 至 125°C
  • 输出信号随温度漂移较小
  • 偏移
  • 带宽
  • 钳位电平
  • 温度补偿系数
  • 内存锁定
