TLS208D1EJV33

TLS208D1EJV33 专为与 DCDC 转换器等预调节器永久连接的应用而设计。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS208D1EJV33
TLS208D1EJV33
每件.

商品详情

  • Hold
    no
  • Accuracy
    2 %
  • Dropout Voltage
    900 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLS208D1xxVxx
  • Reset
    yes
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.7 V to 18 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Currently planned availability until at least
    2037
  • Qualification
    Automotive
  • Regulator Type
    Post Regulator
  • Output Voltage Type
    3.3 V
  • Output Current max
    800 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    90 µA
  • Early Warning
    no
OPN
TLS208D1EJV33XUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
该 IC 将输入电压 VI (2.7V ≤ VI ≤ 18V) 调节为可调输出电压 (0.8V-5.25V 或固定为 ±2% 精度)。TLS208D1EJV33 适合具有预调节器连接的应用。采用 PG-DSO-8(裸露焊盘)和 TSON-10 封装。特点:启用,可调复位阈值。防止过载、短路、过热。输入电容器 CI 补偿线路影响。输出电容器 CQ 确保稳定性。

特性

  • 可调节输出电压:0.8 V 至 5.25 V
  • 输出电压精度:± 2 %
  • 静态输出电流:高达 800 mA
  • 使能功能
  • 具有上电复位延迟的欠压
  • 可调复位阈值
  • 低压差电压:典型值。400mA 时为 400mV
  • 非常低的电流消耗:典型值。90 μA

产品优势

  • 更低的系统成本
  • 极高的电源纹波抑制比
  • 适用于启动 → 2.7V 输入
  • 通过启用功能节省功耗

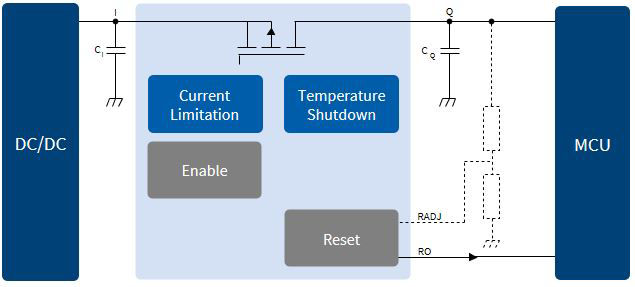

图表

Block_Diagram_TLS208D1EJV33
Block_Diagram_TLS208D1EJV33
Block_Diagram_TLS208D1EJV33 Block_Diagram_TLS208D1EJV33 Block_Diagram_TLS208D1EJV33
Block_Diagram_TLS208D1EJV33 Block_Diagram_TLS208D1EJV33 Block_Diagram_TLS208D1EJV33
