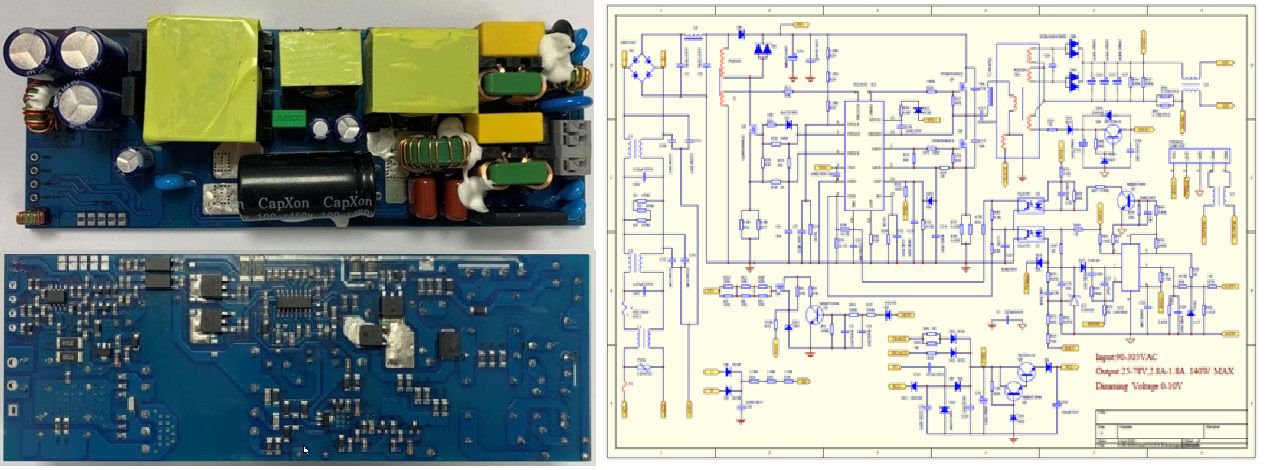

本方案驱动芯片ICL5102集成数字PFC和先进的半桥驱动,支持AC和DC输入,输入电压范围90-305VAC,功率因素大于96%,THD小于10%,效率高达95%。可设计为LLC或LCC拓扑结构,支持恒压(CV)或恒流(CC)输出,工作频率范围为22kHz至500kHz,负载范围大,启动电流小于100 µA,点灯时间快,内置过温保护,具备自动重启功能。工作温度-40℃ 到+125℃,可应用于室内外LED 照明。新增0-10V调光接口可完美实现节能控制。

Led Driver Power Supply Solution Introduction
Led Driver Power Supply Solution Introduction
Led Driver Power Supply Solution Introduction

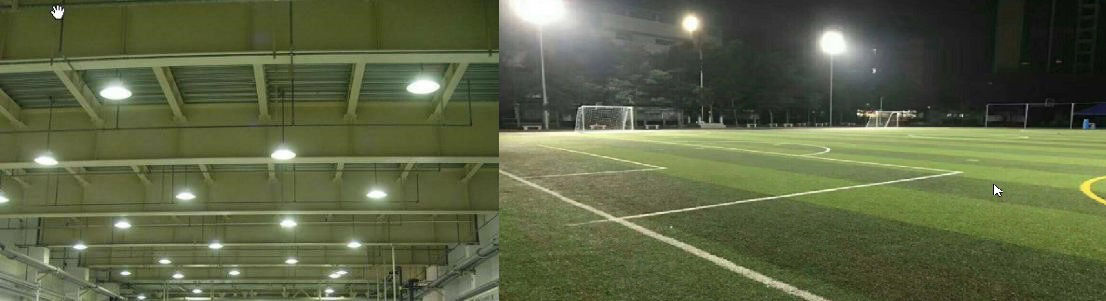

本方案适用于商业、公共场所等室内外LED照明灯具配套电源。

Led Driver Power Supply Application Scenario
Led Driver Power Supply Application Scenario
Led Driver Power Supply Application Scenario

量产
