现货，推荐
符合RoHS标准
无铅

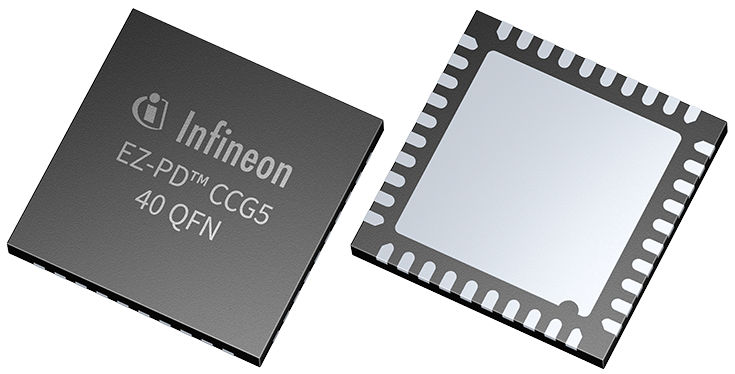

CYPD5126-40LQXIT

数据手册
封装
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPD5126-40LQXIT
CYPD5126-40LQXIT
每件.
数据手册

商品详情

  • GPIOs
    15
  • SRAM
    12 kByte
  • USB Standard
    USB-PD 3.0
  • VBUS Short Protection
    Y
  • VCONN FET
    Y
  • Product Category
    PD controllers
  • Product Description
    Single port Type-C controller
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Processor Type
    ARM® Cortex®-M0
  • Package Type
    40-Pin QFN
  • Peak Reflow Temp
    260 °C
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    2.7 V to 21.5 V
  • Applications
    Notebooks, Desktops
  • Temperature grade
    Industrial
  • # of ports
    Single
  • Family
    EZ-PD™ CCG5C
  • Software Tools
    PSoC™ Creator
  • Flash
    128 kByte
受到推崇的
OPN
CYPD5126-40LQXIT
产品状态 active and preferred
英飞凌封装名称
PG-VQFN-40
封装名 QFN-40 (001-80659)
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
 每件. 有存货

产品状态
Active
英飞凌封装名称
PG-VQFN-40
封装名 QFN-40 (001-80659)
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
