TLE4254GA

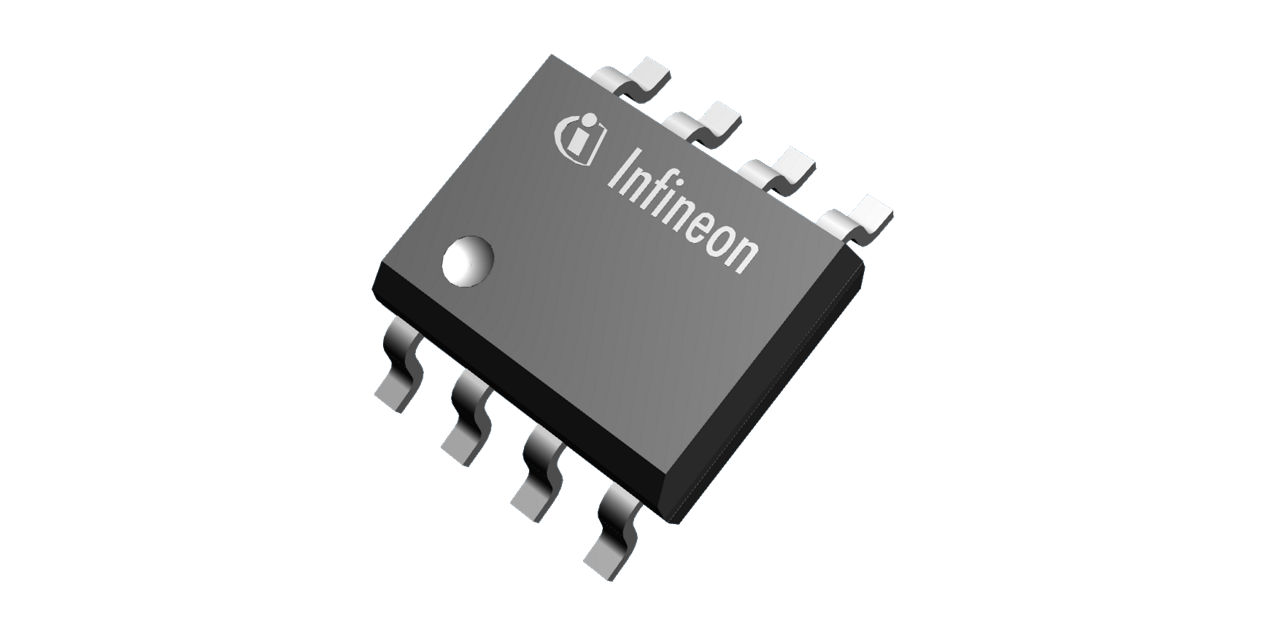

TLE4254GA 是一款单片集成低压差电压跟踪调节器,采用小型 PG-DSO-8 封装,具有高精度。
多个 OPN 可用
每件.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

商品详情

  • Hold
    no
  • Accuracy
    0.1 %
  • Dropout Voltage
    200 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLE4254xx
  • Reset
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4 V to 45 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Family
    OPTIREG™ linear Trackers
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    Trackers
  • Output Voltage Type
    Tracking
  • Output Current max
    70 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    50 µA
  • Budgetary Price €/1k
    0.49, 0.49
  • Early Warning
    no
OPN
TLE4254GAXUMA4 TLE4254GAXUMA1
产品状态 active and preferred not for new design
英飞凌封装名称 PG-DSO-8
封装名 N/A N/A
包装尺寸 2500 2500
包装类型 TAPE & REEL TAPE & REEL
湿度 3 N/A
防潮包装 DRY DRY
无铅 Yes Yes
无卤素 Yes Yes
符合RoHS标准 Yes Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

产品状态 not for new design
英飞凌封装名称 PG-DSO-8
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 -
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
该 IC 为汽车应用中的车载系统提供反极性和短路保护。它支持高达 40 V 的电源电压。输出电压以高精度(最小值)跟踪调节输入端施加的参考电压。2.0伏)。它可以驱动高达 70 mA 的负载,并跟踪主电压调节器的 5 V 输出作为参考。

特性

  • 70 mA 输出电流能力
  • 非常严格的输出跟踪公差
  • 输出电压可调至 2.0 V
  • 采用 1µF 陶瓷输出电容工作
  • 输出电压灵活性
  • 状态输出指示短路
  • 非常低压差
  • 组合参考/使能输入
  • 关闭模式下电流消耗非常低
  • 宽输入 VR -20V≤VI≤ +45V
  • 温度 R: -40°C≤Tj≤150°C
  • 输出具有短路保护

产品优势

  • 高效准确的 V 复制
  • 强大的跟踪供应
