KIT_CSK_PASCO2_5V

新品
XENSIV™ connected sensor kit with XENSIV™ PASCO2V15 5 V gas sensor
用户手册

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_CSK_PASCO2_5V
KIT_CSK_PASCO2_5V
用户手册

商品详情

  • Board Type
    Evaluation Board
  • Supply Voltage
    3.3 V to 5 V
  • Interfaces
    I2C, UART and PWM
  • Family
    XENSIV™ CO2 sensors
受到推崇的
OPN
KITCSKPASCO25VTOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

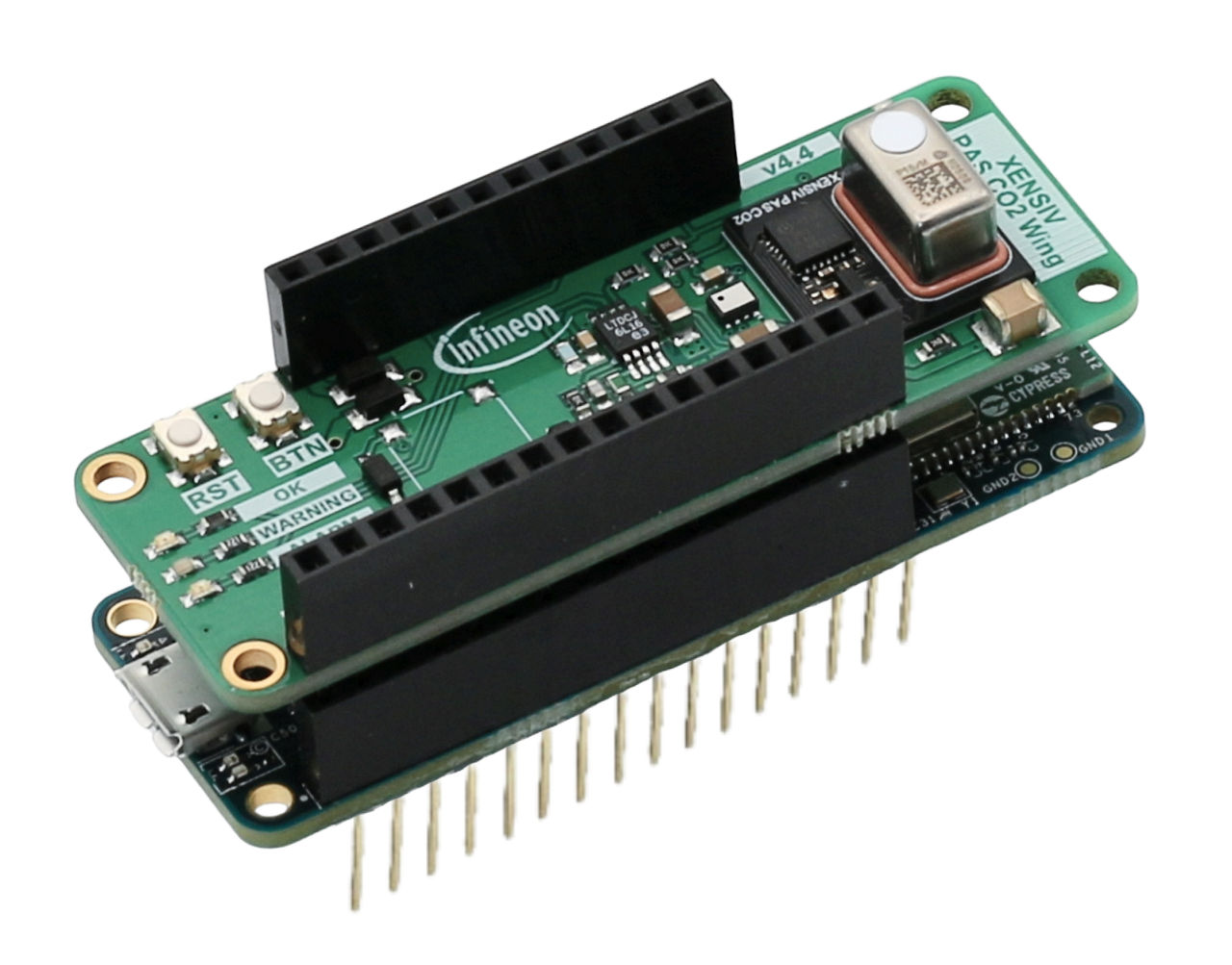

This Connected Sensor Kit features XENSIV™ PASCO2V15 gas sensor. It is a versatile IoT sensors platform designed to accelerate IoT device development, enabling rapid creation of new prototype ideas and real-time evaluation of various use cases with customizable configurations. The kit boasts a compact form factor, is Adafruit Feather-compatible, and can be powered by a battery, making it a convenient and flexible solution for IoT development.

特性

  • Adafruit feather-compatible form factor
  • 22.5 x 63 x 30 mm³ small form factor
  • XENSIV™ PASCO2V15 5 V gas sensor
  • Additional XENSIV™ DPS368 pressure sensor
  • Dual core, low-power PSOC™ 6 MCU
  • Wi-Fi and Bluetooth® combo radio module
  • Interchangeable sensor wings
  • Seamless integration into ModusToolbox™
  • Real-time sensor data evaluation
  • Dedicated cloud demo platform

产品优势

  • Ideal for IoT, battery-powered devices
  • Suited for customer field trials
  • Rapid prototyping with code examples
  • Secure cloud connection with OPTIGA™
  • Secure device provisioning

应用
