9 kW 2-level boost converter for solor photovoltaic solutions

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_9KW2LBOOST
REF_9KW2LBOOST

商品详情

  • Pout max
    9 kW
  • Board Type
    Reference Board
  • Supply Voltage
    350 V to 400 V
  • Sub Application
    Solar Energy Systems
  • Dimensions
    258 mm x 220 mm x 140 mm
  • Topology
    DC/DC
  • Target Application
    Solar
  • Family
    DC/DC Converter
  • Qualification
    Consumer
  • Input Type
    DC
  • Output Voltage
    318 V to 550 V
  • Frequency max
    24 kHz
受到推崇的
OPN
REF9KW2LBOOSTTOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

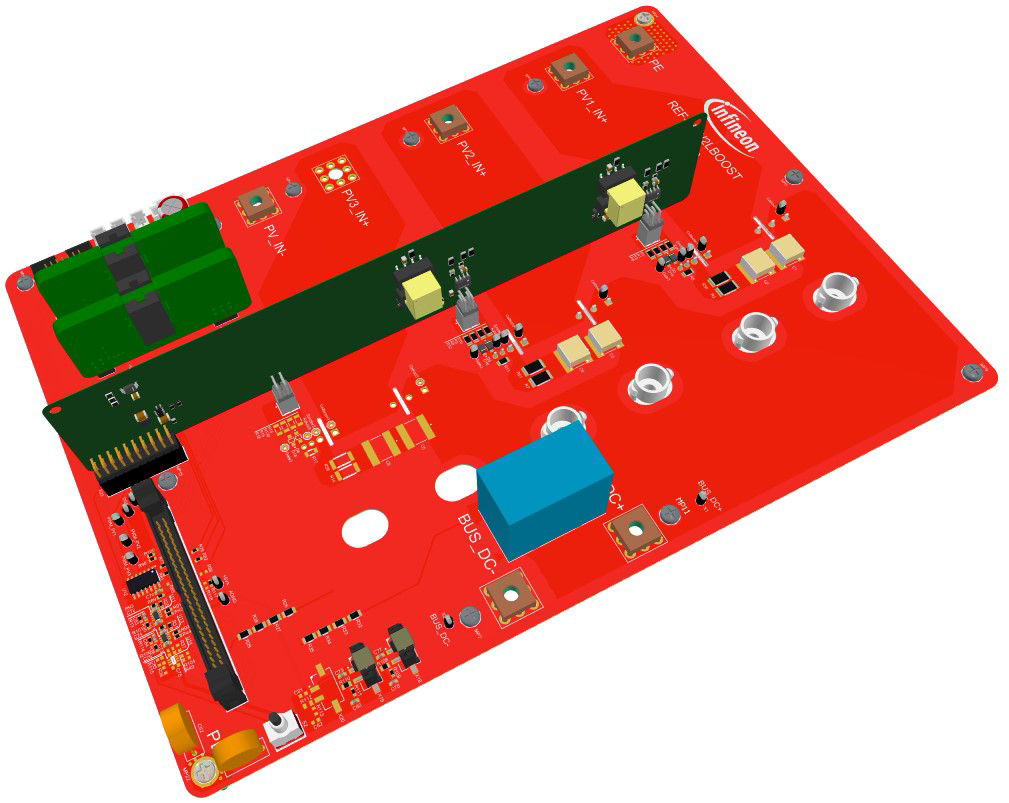

The reference board is a 2-channel boost converter designed to handle power levels up to 9 kW that features Infineon's CoolSiC™ Schottky diode IDS20G65C5 and XENSIV™ magnetic current sensor. It's high switching frequency reduces size and cost. Additionally, the PCB offers all traces for a third channel and provides connectors for users to integrate their own passive components.

特性

  • Isolated gate driver card
  • Current sensors for each DC input
  • Large heat sink for passive cooling
  • Fans for high power rating
  • Built-in auxiliary power supply card

产品优势

  • High switching frequency of 24 kHz
  • Fast and uncomplicated testing
  • Blueprint for shorter time2market
