REF-CLBXMC7PEC
REF-CLBXMC7PEC
用户手册

商品详情

推荐的
OPN
REFCLBXMC7PECTOBO1
产品状态 active and preferred
英飞凌封装名称 --
封装名 N/A
包装尺寸 N/A
包装类型 TRAY
湿度 N/A
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 --
封装名 -
包装尺寸 0
包装类型 TRAY
湿度 -
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

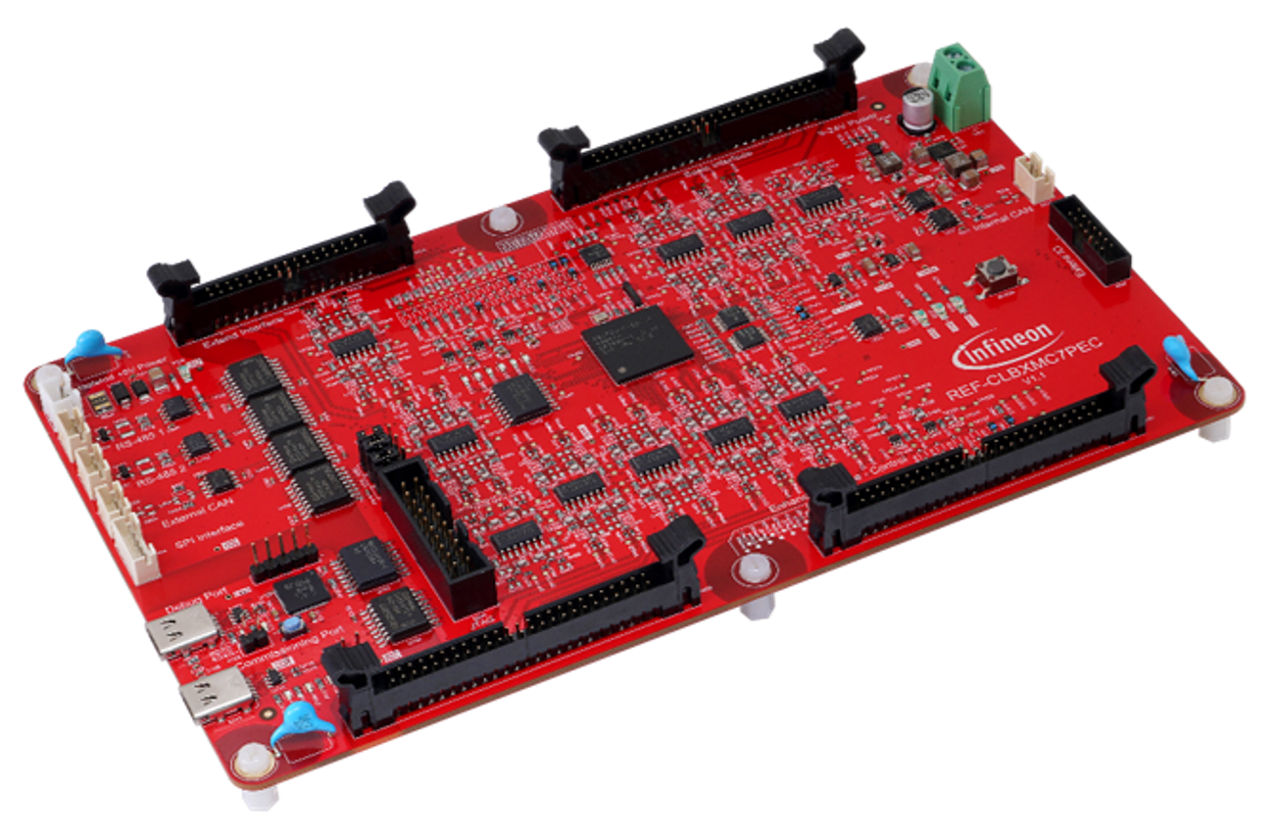

REF-CLBXMC7PEC is a control board that can be used in many power conversion reference designs of Infineon. It enables easy evaluation of power conversion boards and can also be used by the designers to develop their own software. It serves as a rapid prototyping platform. It features an XMC7200 microcontroller, on board debugger, power supply, communication interfaces, protection and signal conditioning circuits. The reference board was developed to support customers during their initial stages of power electronic systems development.

特性

  • 用于电源转换控制的 XMC7200 MCU
  • 使用JTAG和UART的板载调试器
  • CAN、SPI、I2C 和 RS485 接口
  • 闪存和 EEPROM
  • PWM 接口
  • 外部振荡器
  • 闪存和 EEPROM
  • 保护电路

产品优势

  • 专注于电力转换
  • 失误
  • 特别设计的
  • 快速评估您的软件
  • 参考设计测试

应用
