TLF35585QUS01 BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35585QUS01 BOARD
TLF35585QUS01 BOARD

商品详情

  • Product Category
    Evaluation Boards
  • Supply Voltage
    3 V to 40 V
  • Classification
    ISO 26262-ready
  • Sub Application
    Powertrain, Electrical Drive Train, Safety Chassis
  • Applications
    Automotive
  • Target Application
    Automotive
  • Family
    DC-DC Converter, OPTIREG™ PMIC
  • Qualification
    Automotive
  • Language
    SPICE
  • Output Voltage
    5.8 V
受到推崇的
OPN
TLF35585QUS01BOARDTOBO1
产品状态 active and preferred
英飞凌封装名称 N/A
封装名 N/A
包装尺寸 1
包装类型 CONTAINER
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 N/A
封装名 -
包装尺寸 1
包装类型 CONTAINER
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

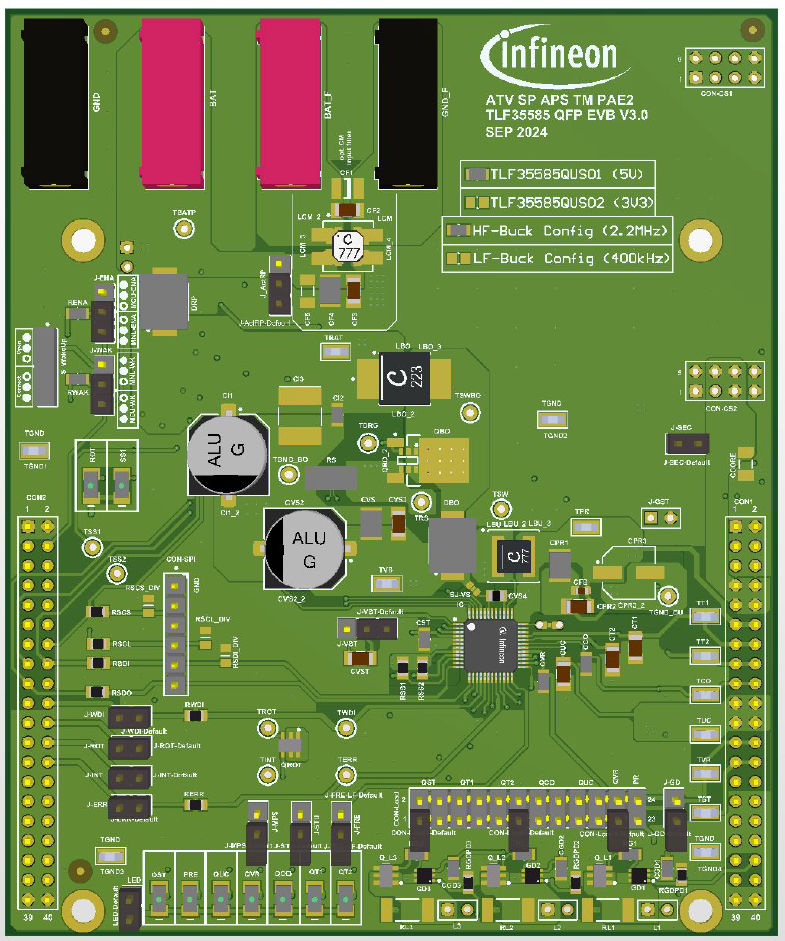

This application board enables you to test analog performance of the OPTIREGTM TLF35585QUS01 PMIC, functional safety system – supply for AURIXTM microcontroller.
The OPTIREGTM TLF35585QUS01 PMIC stand-alone consists of step up/down pre-regulator, three linear post regulators and two trackers VFB =5.8 V, Quc = 5.0 V/ 3.3 V, Qst = 5.0 V/ 3.3 V, Qco = 5.0 V, Qvr = 5.0 V, Qt1=Qt2 = 5.0 V.
The board enables the user to test all power supply rails with external load resistors and to measure SPI signals, INT interrupt signal, ERR signal and window-watchdog service signal (WDI).
Purchasing the Arduino shield buddy development board it is possible to test also the digital performance.If you don‘t have access to the AURIX™ myICP yet, please follow the instructions here.

特性

  • OPTIREGTM PMIC 和无源外部组件集成在一个 PCB 上
  • 优化布局
  • 提供连接器以实现快速子宫测量
  • 符合 ISO 26262 标准

产品优势

  • 除尘微控制器模块即可对TLF35585QUS01电源性能进行模拟测试
  • 测试FuSa相关功能：WWD、FWD、Err信号、SS1/SS2、INT
  • 在受保护的环境中熟悉TLF35585QUS01的安全供电系统机制
  • 获取专业知识并节省时间：PCB布局和BOM指示供给参考
  • 快速设置验证配置是否符合您的系统要求
