现货,推荐
符合RoHS标准
无铅

2ED2104S06F

集成自举二极管的 650 V 半桥栅极驱动器
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED2104S06F
2ED2104S06F
每件.

商品详情

  • VBS UVLO (On)
    8.9 V
  • VBS UVLO (Off)
    8 V
  • VCC UVLO (On)
    8.9 V
  • VCC UVLO (Off)
    8 V
  • Turn Off Propagation Delay
    90 ns

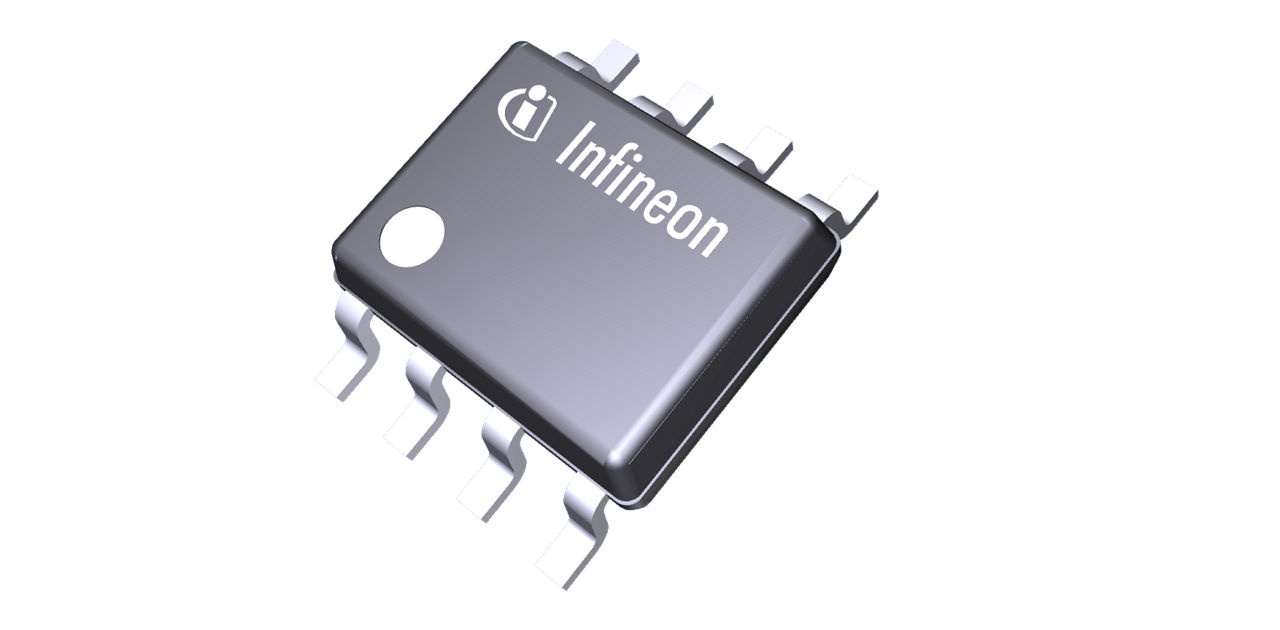

  • Package
    PG-DSO-8
  • Turn On Propagation Delay
    90 ns
  • Voltage Class
    650 V
  • Qualification
    Industrial
  • Input Vcc
    10 V to 20 V
  • Output Current (Source)
    0.29 A
  • Output Current (Sink)
    0.7 A
  • Channels
    2
  • Configuration
    Half Bridge
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
OPN
2ED2104S06FXUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 2
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
650 V 高速半桥栅极驱动器,采用 DSO-8 封装,具有典型的 0.29 A 拉电流和 0.7 A 灌电流,用于驱动功率 MOSFET 和 IGBT。基于我们的 SOI 技术,2ED2104S06F 具有出色的坚固性和抗 VS 引脚上负瞬态电压的抗噪能力。由于器件中不存在寄生晶闸管结构,因此在所有温度和电压条件下都不会发生寄生闩锁。

特性

  • 操作。电压(VS 节点)< + 650 V
  • 负。VS 瞬态抗扰度为 100 V
  • Integr.超快速自举二极管
  • 90 ns 传播延迟
  • 交叉传导预防逻辑
  • 内部 520 ns 死区时间
  • IN、/SD 逻辑输入
  • 用于自举操作的浮动通道
  • 两个通道的独立 UVLO
  • 逻辑操作在 VS 引脚上高达 -11 V
  • 负。输入电压容差为 –5 V
  • 最大供电电压为 25 V

图表

Application_diagram_2ED2104
Application_diagram_2ED2104
Application_diagram_2ED2104 Application_diagram_2ED2104 Application_diagram_2ED2104
