请注意,这是一个已停产的产品。 查看较新的替代产品版本 请注意,这是一个已停产的产品。 查看较新的替代产品版本
停产
已停产
符合RoHS标准
无铅

BSO604NS2

停产
55 V、双 N 通道、35 mΩ(最大值)、汽车 MOSFET、SO8、OptiMOS ™

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSO604NS2
BSO604NS2

商品详情

  • ID (@25°C) max
    5 A
  • IDpuls max
    20 A
  • Ptot max
    2 W
  • QG (typ @10V) max
    19.7 nC
  • RDS (on) (@10V) max
    35 mΩ
  • VDS max
    55 V
  • VGS(th) max
    2 V
  • VGS(th) min
    1.2 V

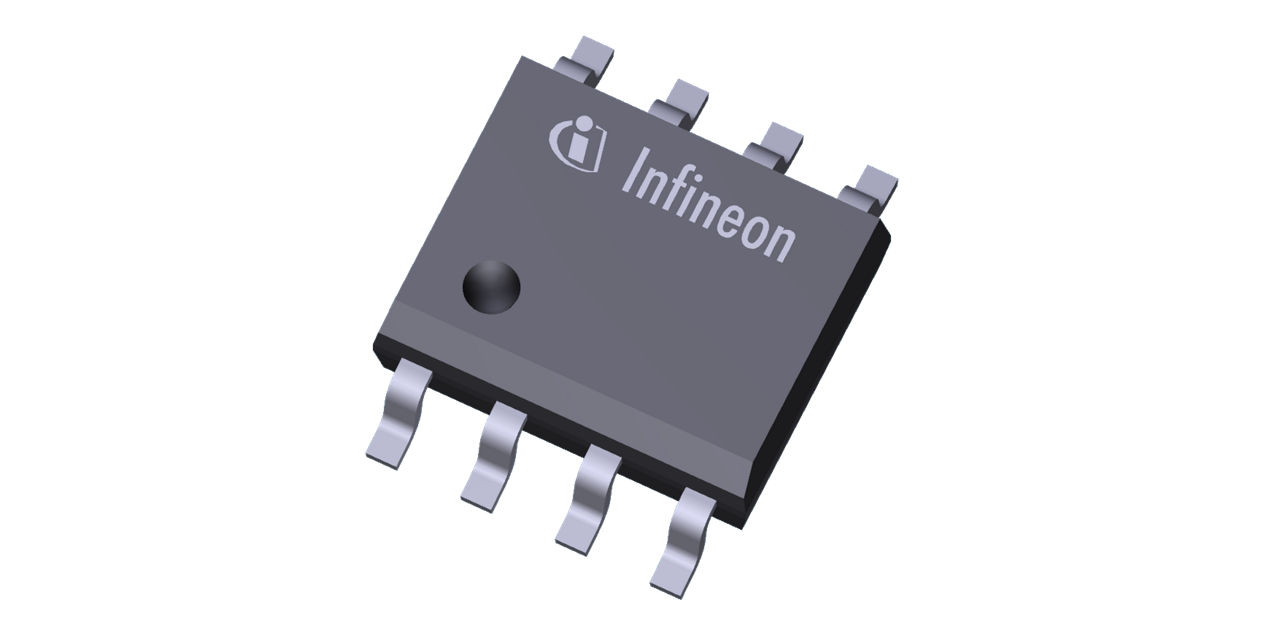

  • Package
    SO8
  • Operating Temperature
    -55 °C to 150 °C
  • Technology
    OptiMOS™
  • Polarity
    N+N
  • Qualification
    Automotive
  • Budgetary Price €/1k
    0.64
OPN
BSO604NS2XUMA1
产品状态 discontinued
英飞凌封装名称
封装名 SO8
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态 discontinued
英飞凌封装名称
封装名 SO8
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准

特性

  • 双 N 通道 - 增强模式
  • 逻辑级别
  • 工作温度 150 °C
  • 雪崩等级
  • dv/dt 额定值
  • 绿色产品(符合 RoHS 标准)
  • AEC 认证
  • 支持 PPAP 的设备

产品优势

  • 双 DS0-8 取代多个 DPAK
  • 显著节省 PCB 面积
  • 降低系统级成本
  • 用于引线键合的大型源引线
  • PG-DSO-8
  • 性能与 DPAK 相同,芯片尺寸相同
  • 用于热传递的裸露焊盘
  • 2 个 N 沟道 MOSFET;隔离引线框架
