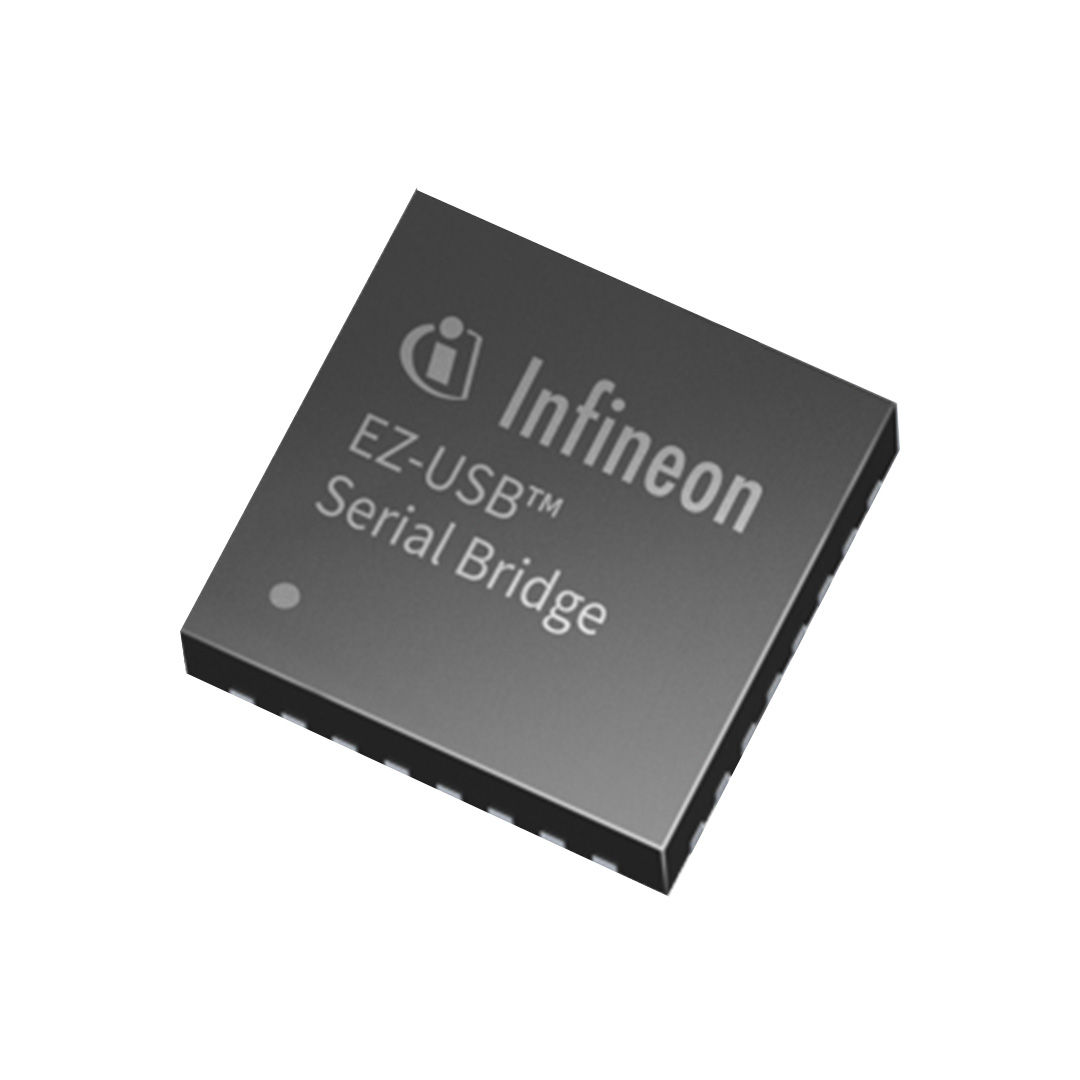

CY7C65210A-24LQXS

托盘包装的汽车级 USB 广告牌控制器

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY7C65210A-24LQXS
CY7C65210A-24LQXS

商品详情

  • USB Standard
    USB 2.0 FS
  • USB Speed
    12 MBit/s
  • Product Category
    2.0 Peripheral Controllers
  • Product Description
    USB Billboard controller
  • Package Type
    24-pin QFN
  • Peak Reflow Temp
    260 °C
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    1.71 V to 5.5 V
  • Applications
    Automotive Head unit, Automotive USB power delivery - Head unit
  • Temperature grade
    Industrial, Automotive Grade-S
  • Family
    EZ-USB™ Serial Bridge Controller
OPN
产品状态
英飞凌封装名称
封装名
包装尺寸
包装类型
湿度
防潮包装
无铅
无卤素
符合RoHS标准
Infineon stock last updated:
全速 USB 控制器,枚举为广告牌设备。它代表了针对舱内应用的集成且经济高效的解决方案。 此部分可按需提供,请在此处联系我们提出您的请求或获取更多信息。

特性

  • 符合 USB 2.0 标准,全速 (12 Mbps)
  • 单通道 I2C 接口
  • 9 个通用 I/O (GPIO) 引脚
  • 2560 字节闪存
  • 广告牌设备特定描述符
  • 广告牌设备的驱动程序支持
  • 集成 48 MHz 时钟振荡器
  • 总线供电和自供电配置
  • USB 挂起模式,可实现低功耗
  • 工作电压:1.71 至 5.5 V
  • 工作温度:-40 °C 至 105 °C
  • 24 引脚 QFN,托盘

应用
