现货,推荐
符合RoHS标准

F3L100R07W2H3_B11

650 V、100 A 三电平 IGBT 模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F3L100R07W2H3_B11
F3L100R07W2H3_B11
每件.

商品详情

  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • VCE(sat)
    1.68 V
  • VCES
    650 V
  • VF
    1.55 V
  • Housing
    EasyPACK™ 2B
  • Technology
    IGBT HighSpeed 3
  • Features
    PressFIT
  • Voltage Class max
    650 V
  • Qualification
    Industrial
  • Configuration
    3-level
OPN
F3L100R07W2H3B11BPSA1
产品状态 active and preferred
英飞凌封装名称 AG-EASY2B
封装名 N/A
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-EASY2B
封装名 -
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

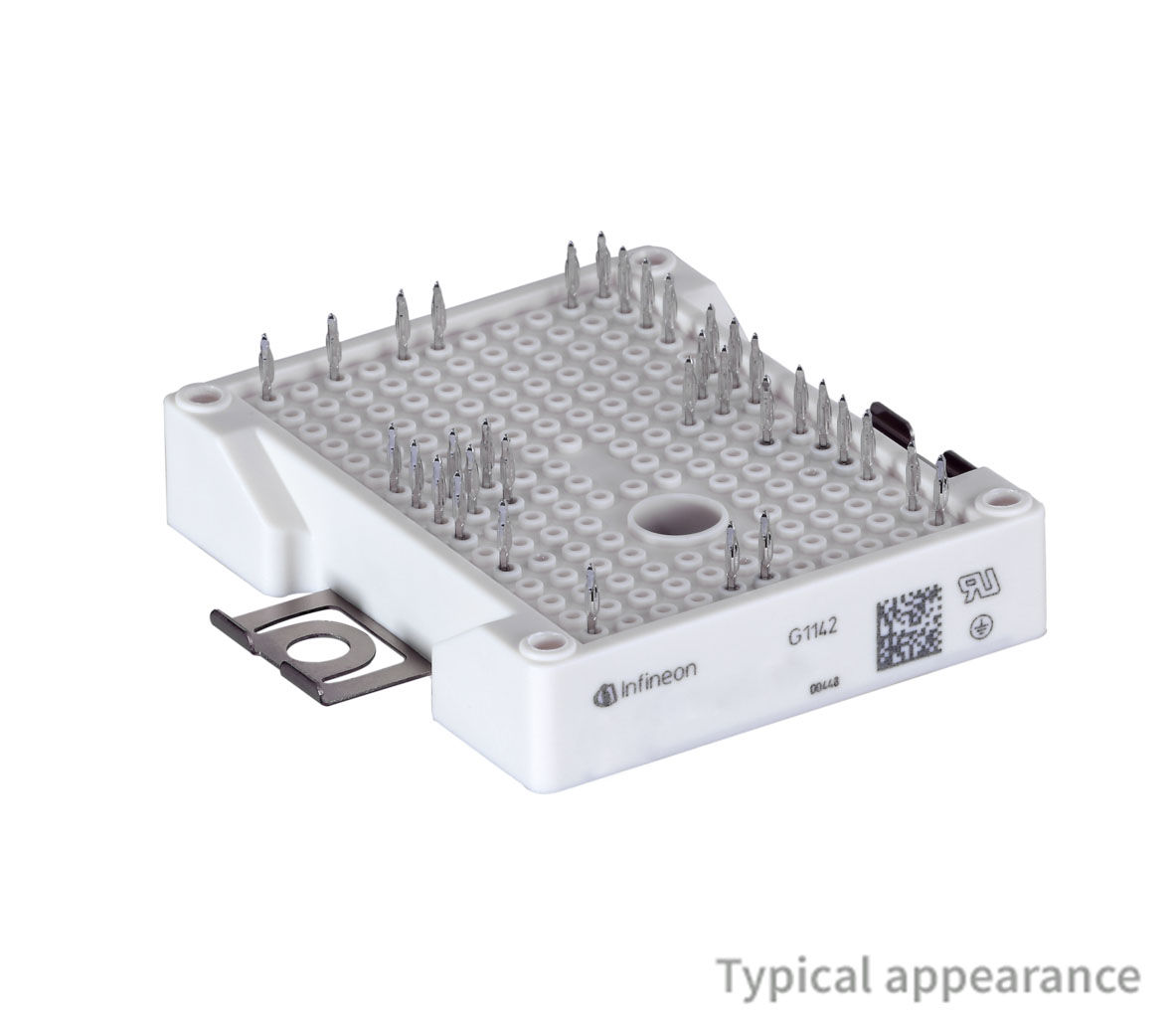

EasyPACK ™ 2B 650 V、100 A 3 级 IGBT 模块,带有 Trench/Fieldstop IGBT H3 和快速二极管以及 PressFIT/NTC。

特性

  • 易于使用
  • 紧凑设计
  • 优化性能
  • 阻断电压能力 < 650 V
  • 低电感设计
  • 低开关损耗
  • 低 VCEsat
  • Al2O3 基板
  • 紧凑设计
  • PressFIT 接触技术
  • 坚固的安装
  • 安装夹
