现货,推荐
符合RoHS标准

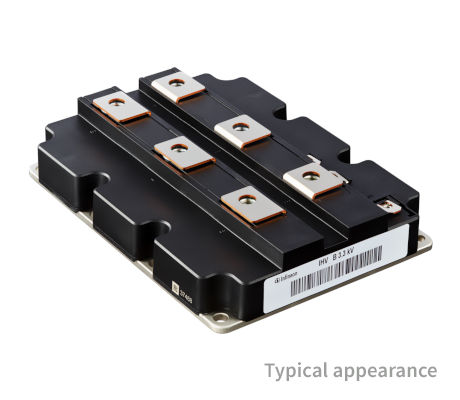

FD1000R33HE3-K

3300 V、1000 A斩波IGBT模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FD1000R33HE3-K
FD1000R33HE3-K
每件.

商品详情

  • IC(nom) / IF(nom)
    1000 A
  • IC max
    1000 A
  • VCE(sat) (Tvj=25°C typ)
    2.55 V
  • VCES / VRRM
    3300 V
  • VF (Tvj=25°C typ)
    3.1 V
  • Housing
    IHM B
  • Dimensions (width)
    140 mm
  • Dimensions (length)
    190 mm
  • Technology
    IGBT3 - E3
  • Features
    common Cathode
  • Voltage Class max
    3300 V
  • Qualification
    Industrial, Traction
  • Configuration
    Chopper
OPN
FD1000R33HE3KBPSA1
产品状态 active and preferred
英飞凌封装名称 AG-IHVB190
封装名 N/A
包装尺寸 1
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-IHVB190
封装名 -
包装尺寸 1
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
IHV B 3300 V、1000 A 190mm 斩波器 IGBT 模块带 IGBT3 - 适合您的中压和驱动应用的最佳解决方案。

特性

  • 高直流稳定性
  • 数十年的现场经验
  • 低开关损耗
  • Tvj op=150°C
  • AlSiC 基板搭配 AlN 衬底
  • CTI > 600 的封装
  • 防火防烟 EN45545 R22、R23 : HL3
  • 斩波拓扑

产品优势

  • 标准化外壳:190x140x38 毫米
  • 数十年的现场经验
  • 使用寿命长
  • 抗过载和故障能力强
  • 低 FIT 率
  • UL 认证

图表

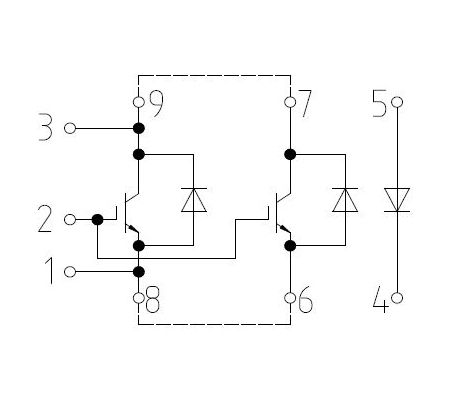

Circuit-diagram-IHM_IHV_190mm_chopper_K
Circuit-diagram-IHM_IHV_190mm_chopper_K
Circuit-diagram-IHM_IHV_190mm_chopper_K Circuit-diagram-IHM_IHV_190mm_chopper_K Circuit-diagram-IHM_IHV_190mm_chopper_K
