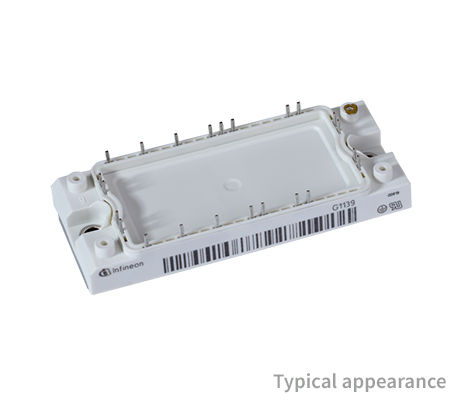

FP25R12KE3

1200 V、25 A PIM三相输入整流器IGBT模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP25R12KE3
FP25R12KE3
每件.

商品详情

  • IC(nom) / IF(nom)
    25 A
  • IC max
    25 A
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Housing
    EconoPIM™ 2
  • Dimensions (length)
    107 mm
  • Dimensions (width)
    45 mm
  • Technology
    IGBT3 - E3
  • Voltage Class max
    1200 V
  • Qualification
    Industrial
  • Configuration
    PIM
OPN
FP25R12KE3BPSA1
产品状态 active and preferred
英飞凌封装名称 AG-ECONO2C
封装名 N/A
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-ECONO2C
封装名 -
包装尺寸 15
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

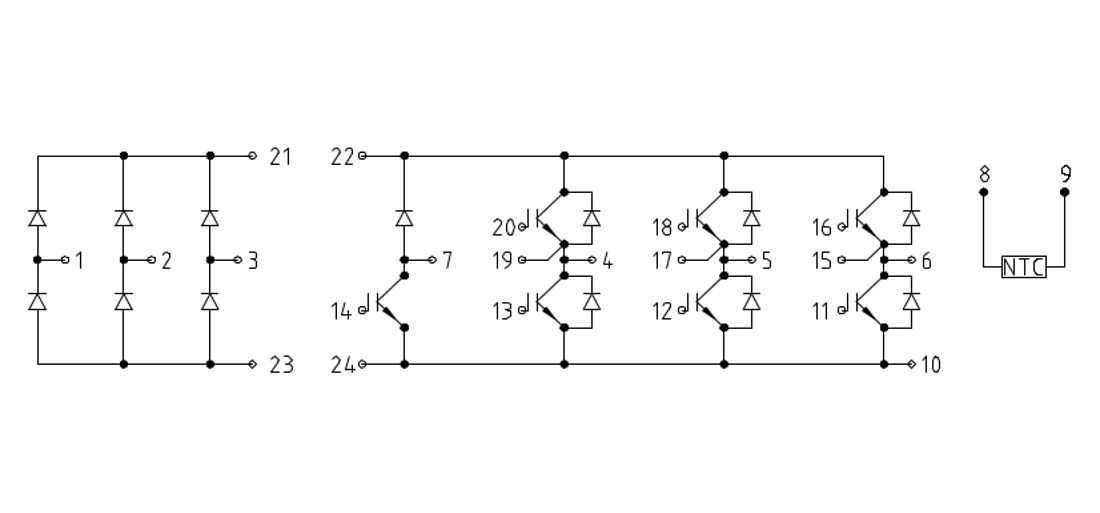

EconoPIM ™ 2 1200 V、25 A 三相 PIM IGBT 模块,带有 IGBT 3 和 NTC。

特性

  • 低杂散电感模块设计
  • 高可靠性和功率密度
  • 铜底板,优化散热
  • 可焊接引脚
  • 低开关损耗
  • 高开关频率
  • 符合RoHS标准

应用

图表

Econo2_B_FP
Econo2_B_FP
Econo2_B_FP Econo2_B_FP Econo2_B_FP
