现货,推荐
符合RoHS标准

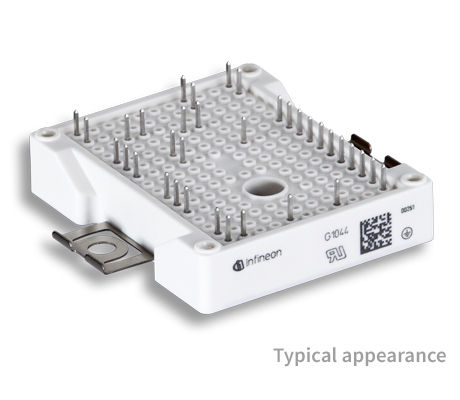

FP35R12W2T4P_B11

1200 V、35 A PIM IGBT模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP35R12W2T4P_B11
FP35R12W2T4P_B11
每件.

商品详情

  • IC(nom) / IF(nom)
    35 A
  • IC max
    35 A
  • VCE(sat) (Tvj=25°C typ)
    1.85 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Housing
    EasyPIM™ 2B
  • Dimensions (length)
    56.7 mm
  • Dimensions (width)
    48 mm
  • Technology
    IGBT4 - T4
  • Features
    PressFIT, TIM
  • Voltage Class max
    1200 V
  • Qualification
    Industrial
  • Configuration
    PIM
OPN
FP35R12W2T4PB11BPSA1
产品状态 active and preferred
英飞凌封装名称 AG-EASY2B
封装名 N/A
包装尺寸 18
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-EASY2B
封装名 -
包装尺寸 18
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
EasyPIM ™ 2B 1200 V、35 A PIM IGBT 模块,配备快速 TRENCHSTOP ™ IGBT4、发射极控制 4 二极管、NTC、PressFIT 接触技术和预涂热界面材料。

特性

  • 高功率密度
  • 建立 Easy 模块概念
  • 集成温度传感器可用。
  • 低杂散电感模块设计
  • 符合RoHS标准的模块
