现货,推荐
符合RoHS标准

FS150R12W3T7_B11

1200 V、150 A 六组 IGBT 模块
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS150R12W3T7_B11
FS150R12W3T7_B11
每件.

商品详情

  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.72 V
  • Housing
    EasyPACK™ 3B
  • Dimensions (length)
    109.9 mm
  • Dimensions (width)
    62 mm
  • Technology
    IGBT7 - T7
  • Features
    PressFIT
  • Voltage Class max
    1200 V
  • Qualification
    Industrial
  • Configuration
    Sixpack
OPN
FS150R12W3T7B11BPSA1
产品状态 active and preferred
英飞凌封装名称 AG-EASY3B
封装名 N/A
包装尺寸 8
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 AG-EASY3B
封装名 -
包装尺寸 8
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

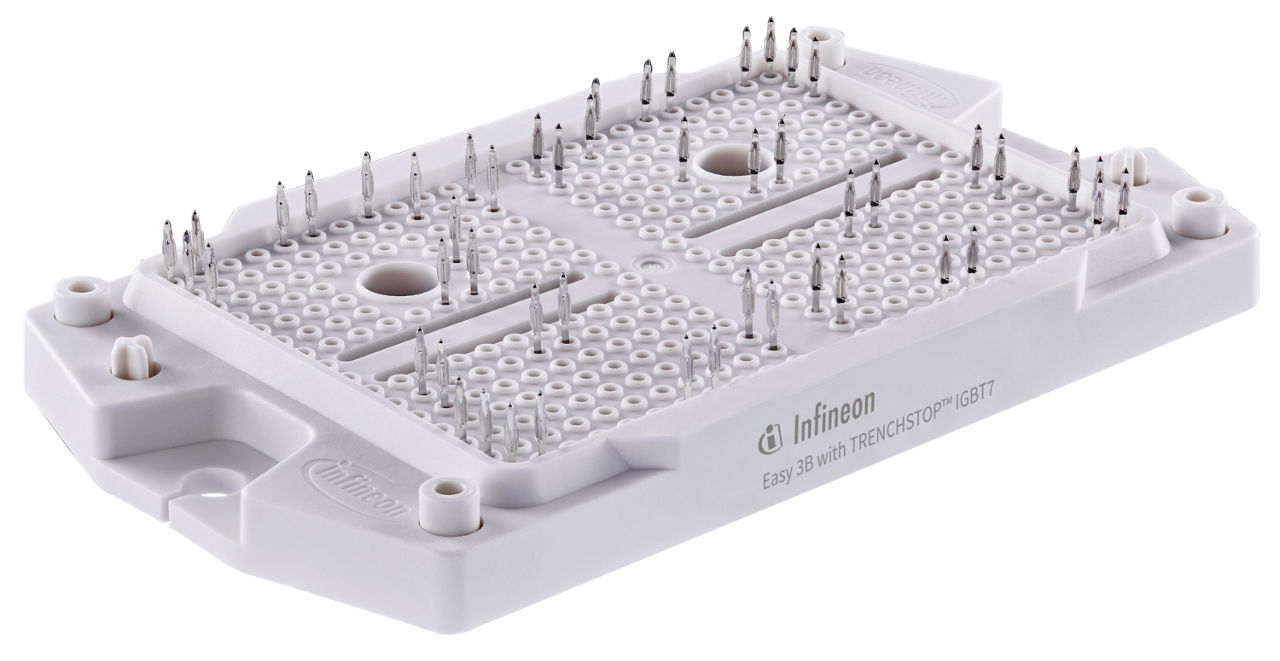

EasyPACK ™ 3B 1200 V、150 A IGBT 模块,带有 TRENCHSTOP ™ IGBT7、发射极控制 7 二极管、PressFIT 接触技术和 NTC。作为Easy3B封装系列的一员,它丰富了工业驱动应用的产品组合。

特性

  • IGBT 和二极管基于最新的微图案沟槽技术
  • 低 Rth 和低功耗
  • 增强 dv/dt 的可控性
  • 针对驱动应用进行了优化

产品优势

  • 更高的功率密度
  • 更低的功率损耗
  • 12mm 高度的完整产品组合
  • 基于平台的设计
  • 功率扩展
  • 降低系统成本
  • 降低系统复杂性
