IPP019N06NF2S

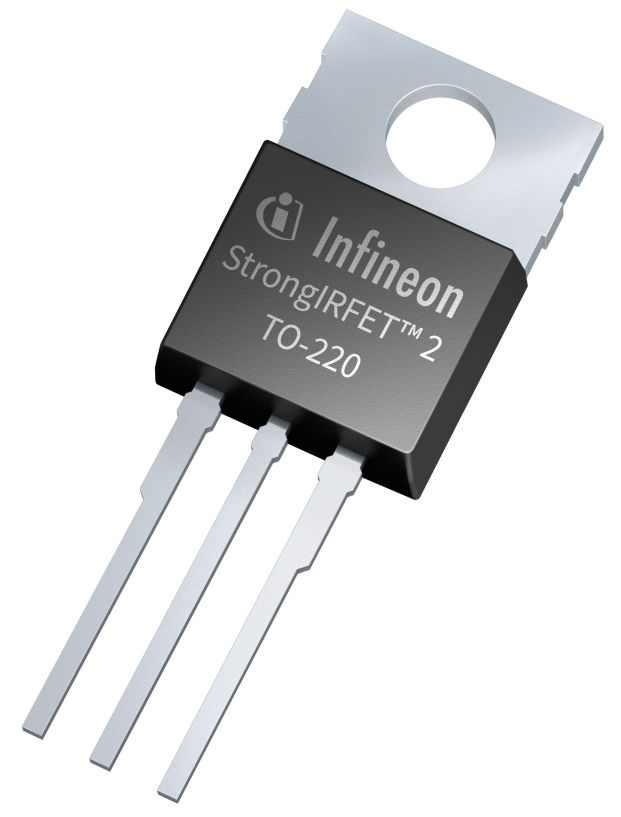

StrongIRFET ™ 2 单 N 沟道功率 MOSFET 60 V,采用 TO-220 封装
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPP019N06NF2S
IPP019N06NF2S
每件.

商品详情

  • ID (@25°C) max
    185 A
  • ID max
    185 A
  • IDpuls max
    740 A
  • Ptot max
    188 W
  • QG (typ @10V)
    108 nC
  • QG
    108 nC
  • RDS (on) (@10V) max
    1.9 mΩ
  • RDS (on) max
    1.9 mΩ
  • VDS max
    60 V
  • VGS(th)
    2.8 V
  • Mounting
    THT
  • Package
    TO-220
  • Operating Temperature
    -55 °C to 175 °C
  • Pin Count
    3 Pins
  • Polarity
    N
  • Battery voltage
    24-66 V
  • Budgetary Price €/1k
    0.75
OPN
IPP019N06NF2SAKMA1
产品状态 active and preferred
英飞凌封装名称 PG-TO220-3
封装名 TO220
包装尺寸 1000
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 PG-TO220-3
封装名 TO220
包装尺寸 1000
包装类型 TUBE
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
英飞凌的 StrongIRFET ™ 2 功率 MOSFET 60 V 具有 1.9 mOhm 的低 RDS(on),可满足从低开关频率到高开关频率的广泛应用。

特性

  • 可从分销合作伙伴处获取
  • 卓越的性价比
  • 适用于高和低开关频率
  • 行业标准尺寸封装
  • 高额定电流
  • 可进行波峰焊

产品优势

  • 多供应商兼容性
  • 合适的产品
  • 支持各种各样的应用
  • 标准引脚排列,可直接替换
  • 提高电流承载能力
  • 易于制造

应用
