现货,推荐
符合RoHS标准
无铅

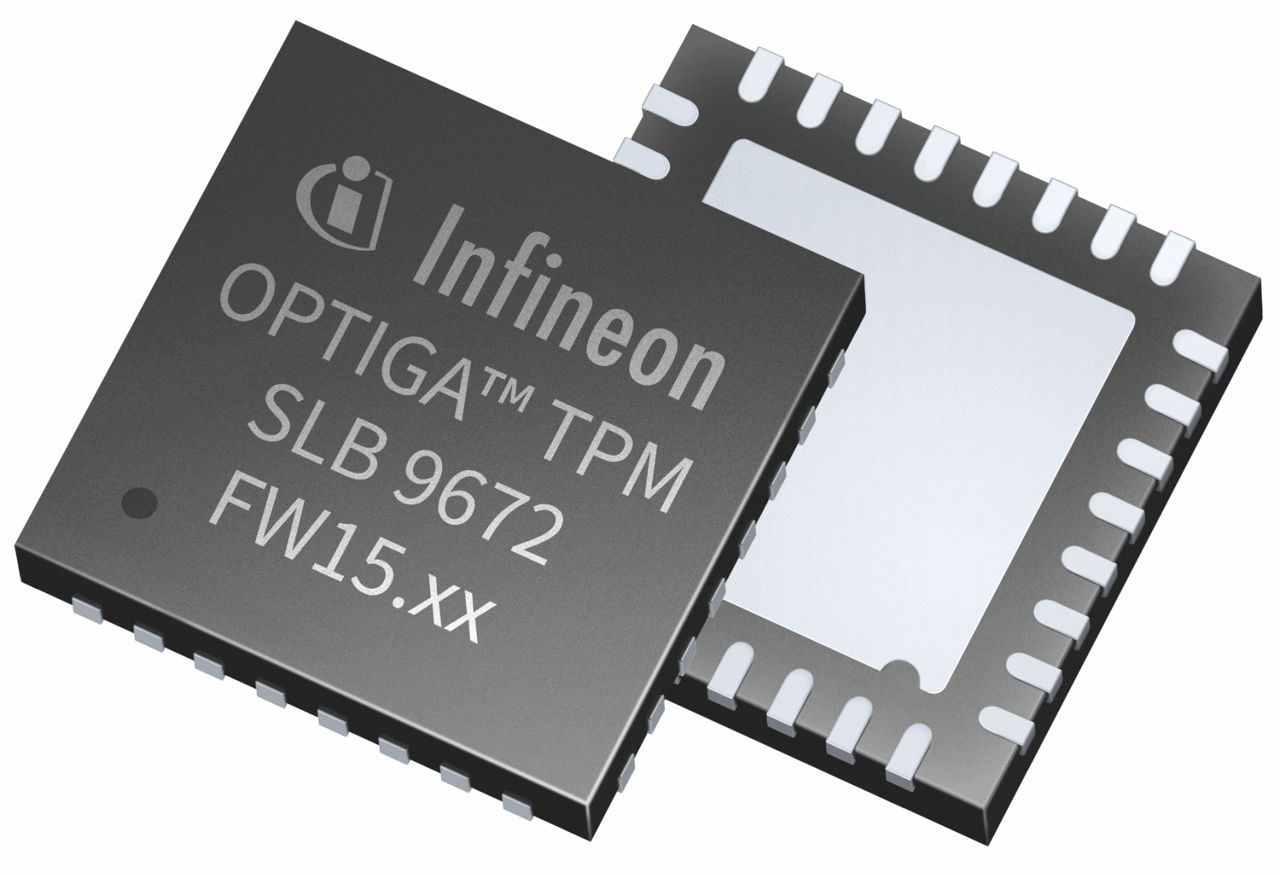

OPTIGA TPM SLB 9672 FW15

针对PC及服务器进行优化并带有SPI接口和PQC保护固件更新机制的即用型TPM
多个 OPN 可用
每件.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

OPTIGA TPM SLB 9672 FW15
OPTIGA TPM SLB 9672 FW15
每件.

商品详情

  • CPU
    32-bit
  • NVM / 凌捷掩膜
    51 kByte
  • Delivery Forms
    UQFN-32
  • Product Description
    FW15.xx, TPM for computing platforms (PC and Server)
  • Additional Information
    Version 2.0 Rev. 01.59
  • Symmetric Cryptography
    SHA-1, SHA2-256, SHA2-384, HMAC
  • Package
    UQFN-32
  • Applications
    Trusted computing, Servers, PC and mobile computing with Intel x86
  • Interfaces
    SPI
  • Ambient Temperature
    -40 °C to 85 °C, -20 °C to 85 °C
  • Use Cases
    TPM, PC (Laptop, Desktop) and Server
  • Certifications
    CC EAL4+, FIPS 140-2 level 2
  • Asymmetric Cryptography
    RSA1024, RSA2048, RSA3072, RSA4096, ECC NIST P384, ECC BN256, ECC NIST P256
OPN
SLB9672VU20FW1523XTMA1 SLB9672XU20FW1523XTMA1 SLB9672XU20FW1522XTMA1 SLB9672VU20FW1522XTMA1
产品状态 active and preferred active and preferred discontinued discontinued
英飞凌封装名称
封装名 N/A N/A N/A N/A
包装尺寸 5000 5000 5000 5000
包装类型 TAPE & REEL TAPE & REEL TAPE & REEL TAPE & REEL
湿度 1 1 1 1
防潮包装 NON DRY NON DRY NON DRY NON DRY
无铅 Yes Yes Yes Yes
无卤素 Yes Yes Yes Yes
符合RoHS标准 Yes Yes Yes Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

产品状态 discontinued
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准

产品状态 discontinued
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
OPTIGA ™ TPM SLB 9672 FW15.xx 是 Microsoft Windows 环境/生态系统和具有 PC 架构的连接设备的首选。它为安全地建立个人电脑和服务器的身份和软件状态提供了坚实的基础。此 TPM 配备扩展内存和更强大的加密算法。它是市场上第一个使用 XMSS 签名提供 PQC 保护固件更新机制的 TPM。

特性

  • 标准化安全控制器
  • SPI 接口
  • 扩展非易失性存储器 (51 kB)
  • 不对称。加密高达 RSA-4k 和 ECC P384
  • 对称加密高达 AES 256
  • 哈希高达 SHA2-384
  • Windows HLK 认证
  • TCG、CC 和 FIPS 140-2 认证
  • 符合 TCG TPM Lib。规格 (v.1.59)
  • 兼容 TCG PC 客户端 PTP (v.1.05)
  • PQC 保护的 FW 更新机制
  • 薄型 UQFN-32 封装

产品优势

  • 经过验证的交钥匙安全解决方案
  • 高置信度(CC/FIPS 证书)
  • 更快的加密操作
  • 轻松与 Windows/Linux OS Pl 集成。

图表

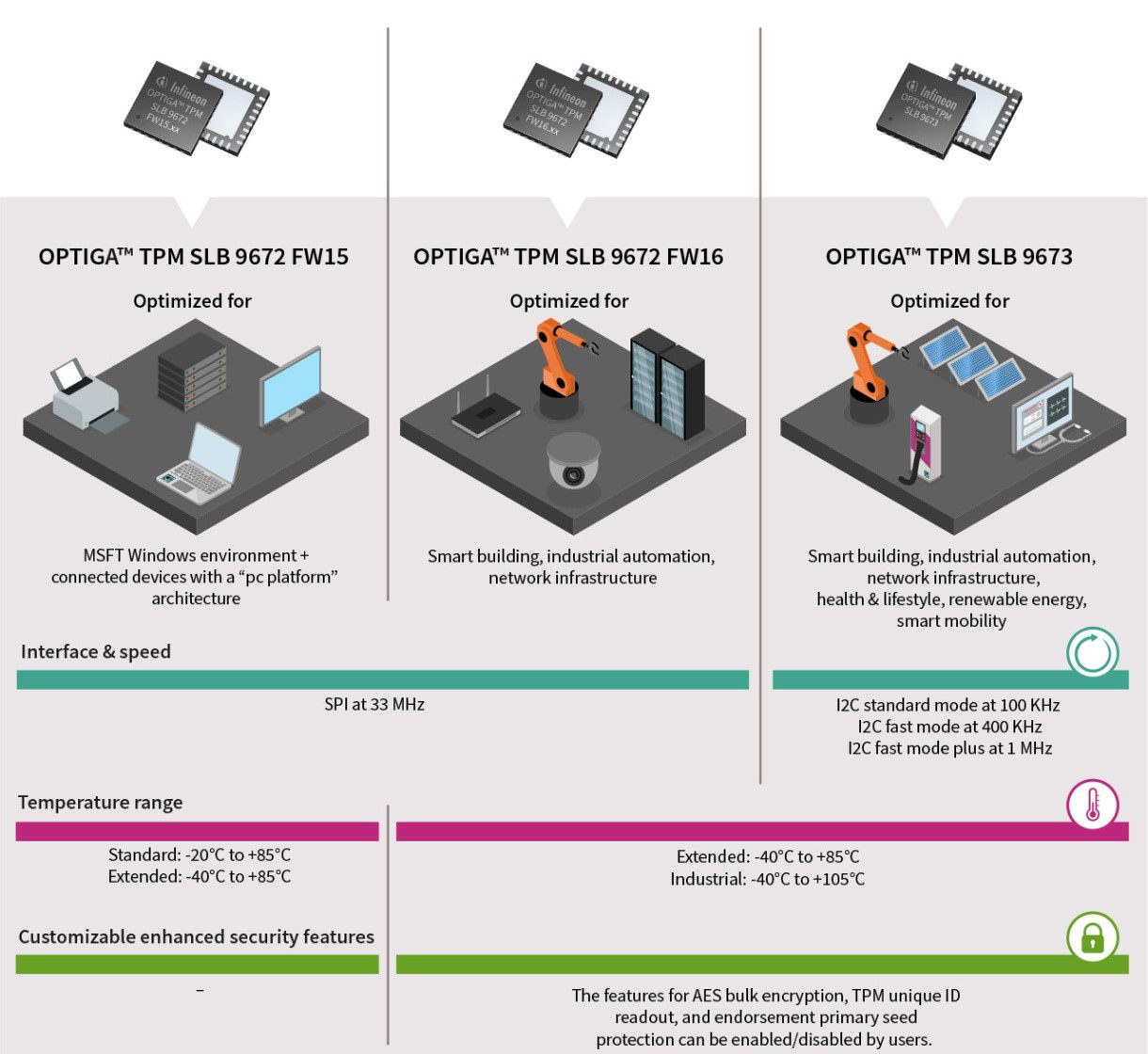

Overview of differences in the OPTIGA™ TPM features and applications
