P3000ZL45X168

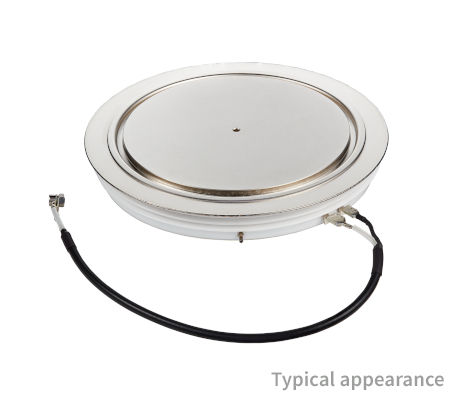

4500 V、3000 A 压接式 IGBT

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

P3000ZL45X168
P3000ZL45X168

商品详情

  • IC(nom) / IF(nom)
    3000 A
  • VCE(sat) (Tvj=25°C typ) max
    3.05 V
  • VCES
    4500 V
  • Housing
    Disc dia 168mm high 26mm / Ceramic
  • Configuration
    IGBT
OPN
P3000ZL45X168HPSA1
产品状态 active and preferred
英飞凌封装名称 BG-P16826K-1
封装名 N/A
包装尺寸 1
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称 BG-P16826K-1
封装名 -
包装尺寸 1
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
Press Pack IGBT 采用英飞凌 Trench 4.5 kV IGBT 芯片,可提供 3000 A 电流,无需内部续流二极管。

特性

  • 发生故障时的行为
  • 密封外壳
  • 设备冷却
  • 堆栈设计
