TLE4251D

TLE4251D 是一款单片集成低压降电压跟踪器,采用非常小的 SMD 封装 PG-TO252-5-1。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4251D
TLE4251D
每件.

商品详情

  • Hold
    no
  • Accuracy
    0.5 %
  • Dropout Voltage
    280 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLE4251xx
  • Reset
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4 V to 40 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Family
    OPTIREG™ linear Trackers
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    Trackers
  • Output Voltage Type
    Tracking
  • Output Current max
    300 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    230 µA
  • Budgetary Price €/1k
    0.78
  • Early Warning
    no
OPN
TLE4251DATMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 No
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLE4251 是一款汽车级设备,具有过载、短路和反极性保护功能。它跟踪高达 40 V 的电源电压到调整输入处的参考电压。输出可驱动高达 400 mA 的负载,精度为 0.5%。在由 EN 输入激活的待机模式下,该 IC 的电流消耗非常低,非常适合低功耗电池应用。

特性

  • 输出跟踪公差 ≤ ±0.2%
  • 400 mA 输出电流能力
  • 启用功能
  • 关闭模式下电流消耗极低
  • 宽工作范围:高达 40 V
  • 温度 R:-40°C≤Tj≤150°C
  • 输出短路保护
  • 过温保护
  • 反极性保护
  • 绿色产品(符合 RoHS 标准)
  • 符合 AEC 认证

产品优势

  • 高效、准确的 V 复制
  • 强大的跟踪电源

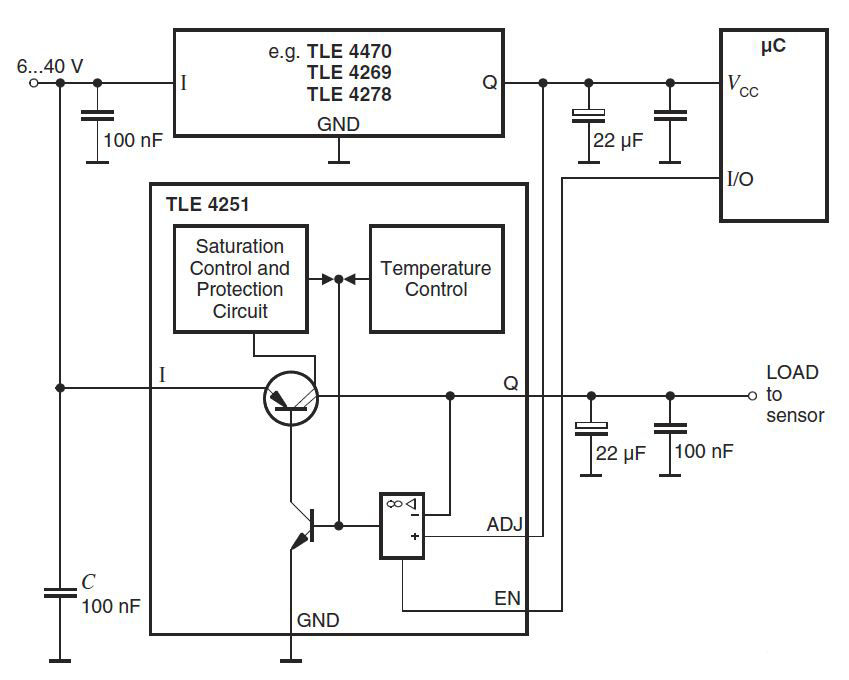

图表

TLE4251-Application-diagram
TLE4251-Application-diagram
TLE4251-Application-diagram TLE4251-Application-diagram TLE4251-Application-diagram
