TLE4906-3K

XENSIV ™ - TLE4906-3K 单极霍尔开关,高精度位置传感

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4906-3K
TLE4906-3K

商品详情

  • Bhyst
    5.5 mT
  • Bop
    28 mT
  • Brp
    22.5 mT
  • Product Category
    Sensors
  • Product Description
    Automotive qualified unipolar Hall switch
  • Supply Voltage
    2.7 V to 24 V
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Interfaces
    open collector
  • Temperature
    -40 °C to 170 °C
  • Type
    Unipolar
  • Language
    Magnetics
OPN
TLE49063KHTSA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
英飞凌 TLE4906-3K 是一款精密磁霍尔传感器,具有高达 150°C 温度的精确阈值。非常适合需要精确位置传感的汽车应用,其工作范围为 -40°C 至 +150°C。该单极开关由磁铁的南极触发。BOP 上方的磁场将输出切换至低电平(晶体管开启),而 BRP 下方的磁场将输出切换回高电平(晶体管关闭)。

特性

  • 2.7V 至 24V 电源电压
  • 采用非稳压电源供电
  • 磁性开关稳定性高
  • 抗机械应力能力强
  • 电池反接保护 (-18V)
  • 卓越的温度稳定性
  • 高 ESD 性能 (± 4kV HBM)
  • 数字输出信号

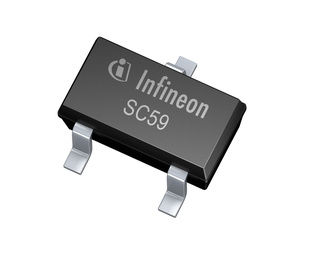

  • SMD 封装 SC59(兼容 SOT23)
