TLE4973-RE35D5-S0010

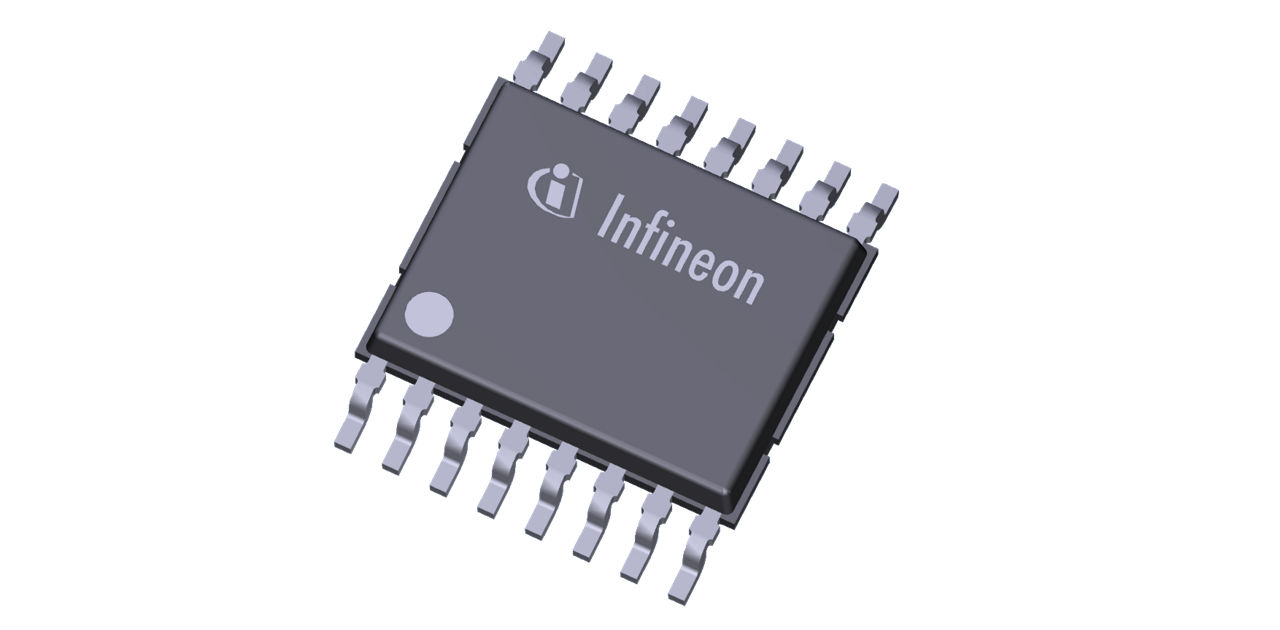

XENSIV ™ - TLE4973-RE35D5-S0010 高精度无芯电流传感器,采用引线 TDSO-16 封装,具有数字控制和诊断接口

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4973-RE35D5-S0010
TLE4973-RE35D5-S0010

商品详情

  • Supply Voltage
    4.5 - 5.5
  • Accuracy
    2 %
  • Classification
    ISO 26262-compliant, AEC-Q100
  • Interfaces
    Analog
  • Measurement range
    34 mT
  • Currently planned availability until at least
    2038
  • Diagnosis
    OCD, OV, UV, diagnosis mode
OPN
TLE4973RE35D5S0010XUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
TLE4973-RE35D5-S0010 提供与测量磁场成比例的模拟输出和过流检测输出。数字控制和诊断接口提供温度。和安全状态读取,读/写程序。访问内部E2PROM,控制诊断模式。英飞凌的霍尔技术可实现精确且高度线性的测量。它的测量范围允许感测无负极电流。效应,如磁滞或饱和。

特性

  • 高精度无芯传感器
  • 5V电源电压
  • 数字控制接口
  • 非常快速的过流检测
  • 可编程灵敏度
  • 可编程过流阈值
  • 符合ISO 26262(ASIL B)

产品优势

  • 无滞后,无饱和
  • 过流保护
  • 极低功耗
  • 适合安全关键应用
  • 终身可靠测量

应用
