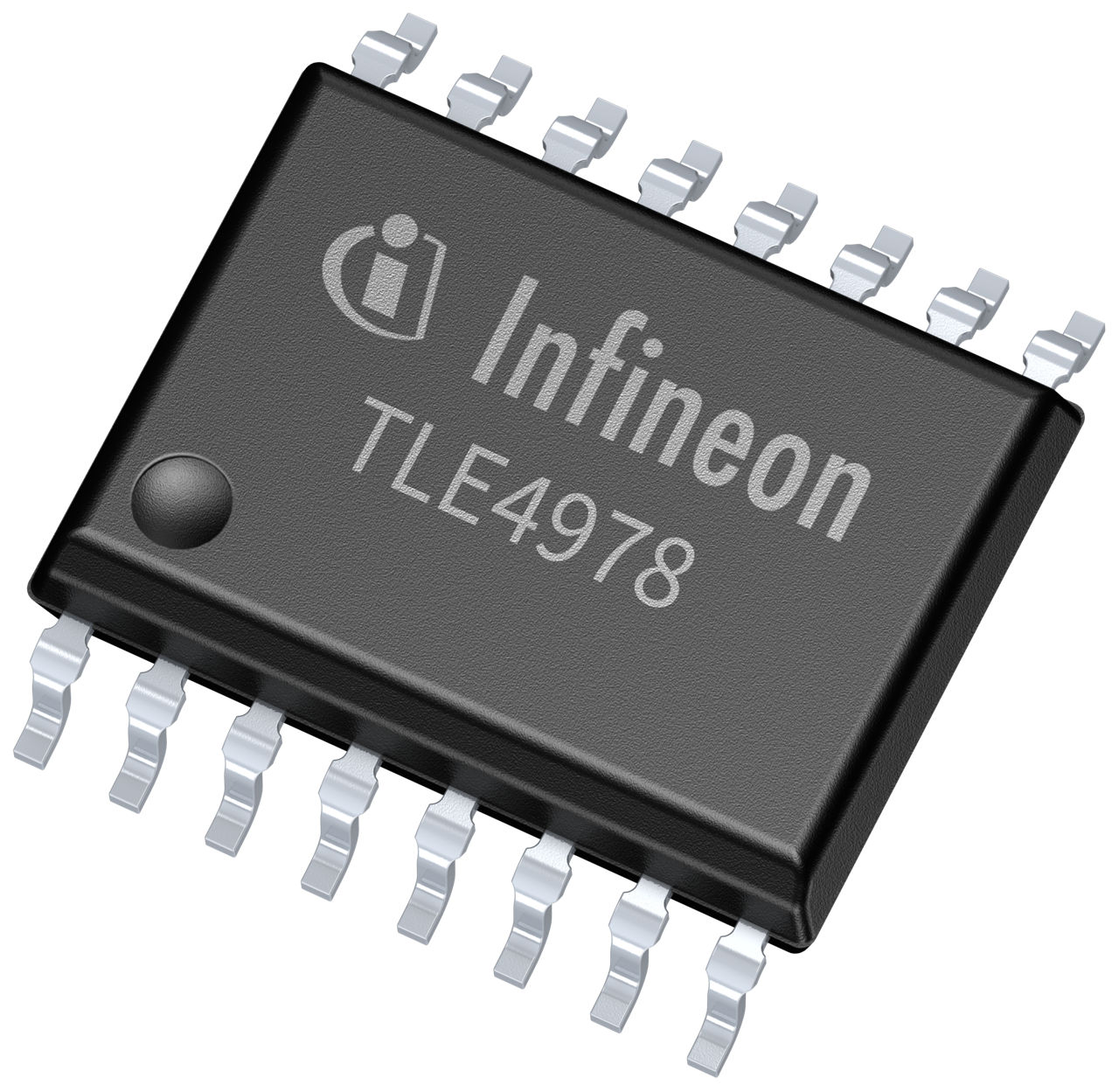

TLE4978-R050W5-O-S0010

新品
XENSIV™ TLE4978 current sensor with reinforced isolation, Hall+coil architecture, iCR, and DC–9 MHz bandwidth
数据手册
封装
评估板
软件

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4978-R050W5-O-S0010
TLE4978-R050W5-O-S0010
数据手册

商品详情

  • Current rail
    internal (iCR)
  • 供电电压
    4.5 - 5.5 V
  • 准确性
    0.55 %
  • 分类
    UL 1577, ISO 26262-compliant, AEC-Q100
  • 接口
    Analog
  • 环保认证
    RoHS compliant, Halogen free
  • 电流范围
    56 A
  • 诊断
    OCD, diagnosis mode, UV, OV
  • 隔离UIORM
    1700 V
推荐的
OPN
TLE4978R050W5OS0010XUMA1
产品状态 active and preferred
英飞凌封装名称
PG-DSO-16
封装名 N/A
包装尺寸 1500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
PG-DSO-16
封装名 -
包装尺寸 1500
包装类型 TAPE & REEL
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
The XENSIV™ TLE4978 uses a hybrid Hall+coil architecture for bidirectional AC/DC current sensing. Integrated OCD and ZCD reduce BOM. With ISO 26262 up to ASIL B, it offers 9 MHz bandwidth and high accuracy for automotive and industrial designs. Grade 0 DSO 16 supports reinforced isolation. Precalibrated, with pre programmed sensitivity, it delivers 38 mARMS noise, <1% accuracy over full temp, and adjustable OCD/ZCD thresholds.

特性

  • High bandwidth of 9 MHz
  • Current measurement range ±56 Apk
  • Supply voltage of 5 V
  • 100 ns response overcurrent detection
  • 80 ns delay zero-crossing detection
  • -40°C to 150°C operating range (Grade 0)
  • ASIL-B-classified
  • DSO-16 300 mil package
  • Offers both basic and reinforced isolation

产品优势

  • Extremely high bandwidth for versatile use
  • Separated output for better performance
  • Fast zero-current crossing detection
  • High accuracy over temperature/lifetime
  • Extremely low noise for improved accuracy
  • Easy integration into various designs
  • Protects SiC, GaN, MOSFET, IGBT switches
  • Programmable OCD and ZCD thresholds
