现货,推荐
符合RoHS标准
无铅

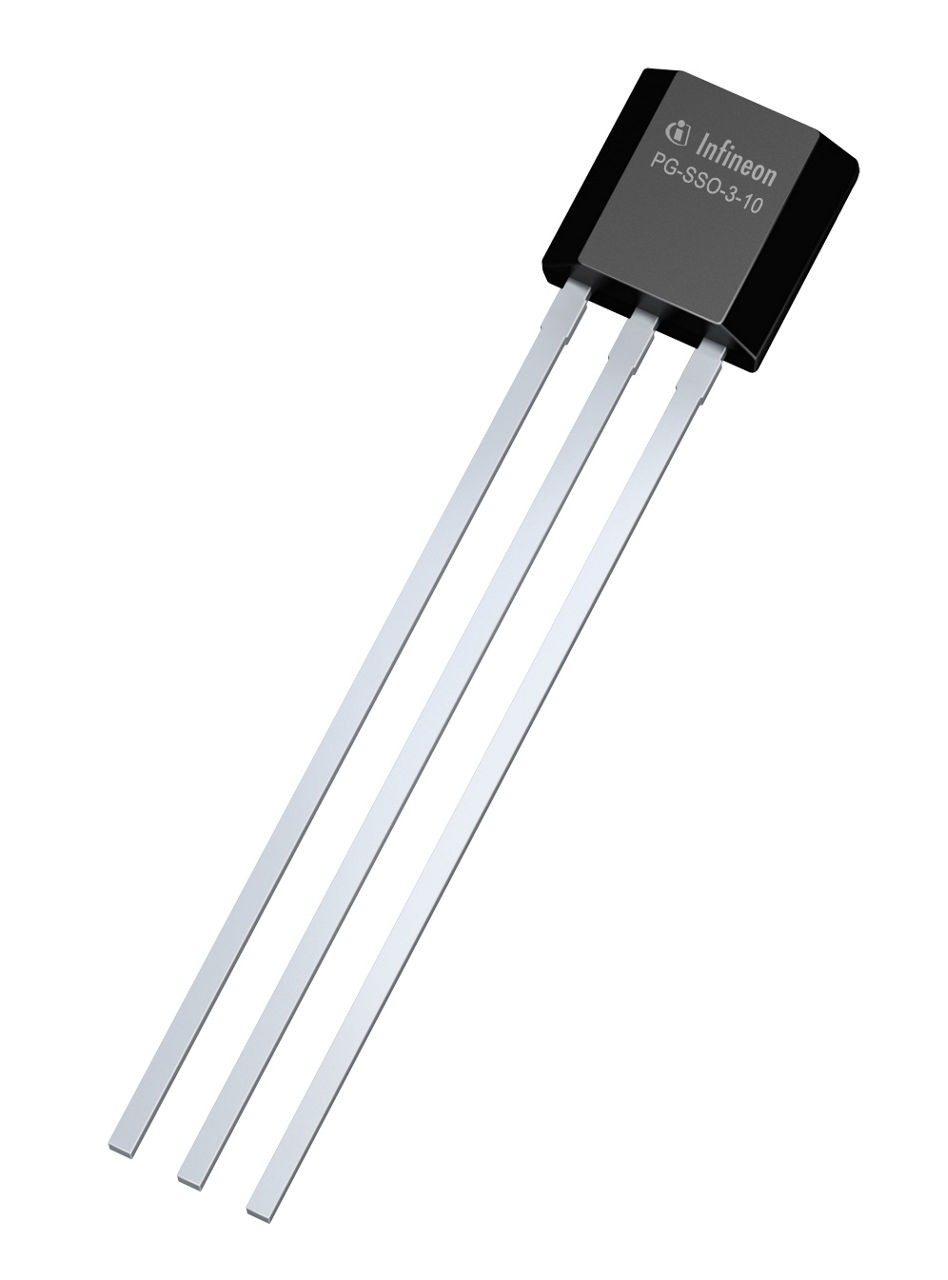

TLE4998S3

XENSIV ™ - TLE4998S3 线性霍尔 IC,所有引脚均具有反极性和过压保护
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4998S3
TLE4998S3
每件.

商品详情

  • Classification
    ISO 26262-ready
  • Programmable
    yes
  • Package
    Leaded
  • Applications
    Linear Hall
  • Interfaces
    SENT
  • Currently planned availability until at least
    2033
  • Budgetary Price €/1k
    1.66
OPN
TLE4998S3XALA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 2000
包装类型 AMMO-PACK
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 2000
包装类型 AMMO-PACK
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
英飞凌的 TLE4998S 线性传感器专为精确旋转/位置检测和电流测量而设计。提供带有霍尔值、温度和状态信息的数字 SENT 信号(SAE J2716 标准)。输出:漏极开路,需要外部上拉才能达到高电平。采用高压 BiCMOS 技术生产,具有反极性保护功能。16 位 DSP 架构和数字温度补偿确保出色的稳定性(16 位分辨率,内部级高达 20 位)。

特性

  • 带增强型接口的 SPC 协议
  • 20 位数字信号处理 (DSP)
  • 数字温度补偿
  • 16 位总分辨率
  • 在汽车温度范围内工作
  • O/P 信号随温度变化的低漂移
  • 可编程参数存储在 EEPROM 中
  • 电源电压 4.5 - 5.5 V
  • 工作温度范围为 -200mT 和 +200mT
  • 反极性和过压保护
  • 输出短路保护
  • 板载诊断(过压)
