TLE9251VSJ
不建议用于新设计
符合RoHS标准
无铅

TLE9251VSJ

The TLE9251VSJ is the High Speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.
数据手册
封装
替换型号

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9251VSJ
TLE9251VSJ
替换型号
数据手册


商品详情

  • 产品类别
    Transceivers
  • 最高 传输速率
    5 MBit/s
  • 供电电压
    3.3 V, 5 V
  • 唤醒输入
    Bus Wake-up
  • 基本产品
    TLE925x
  • 总线唤醒功能
    Yes
  • 标准
    ISO11898-5
  • 特性
    Vio, STB
  • 环保认证
    Halogen free, RoHS compliant
  • 类型
    CAN, CAN FD
  • 系列
    CAN FD 5MBit/s
  • 语言
    IBIS
  • 质量等级
    Automotive
  • 附加功能
    STB, Vio
  • 静态电流
    < 15 µA at 5 V standby

OPN
TLE9251VSJXUMA1
产品状态 not for new design
英飞凌封装名称

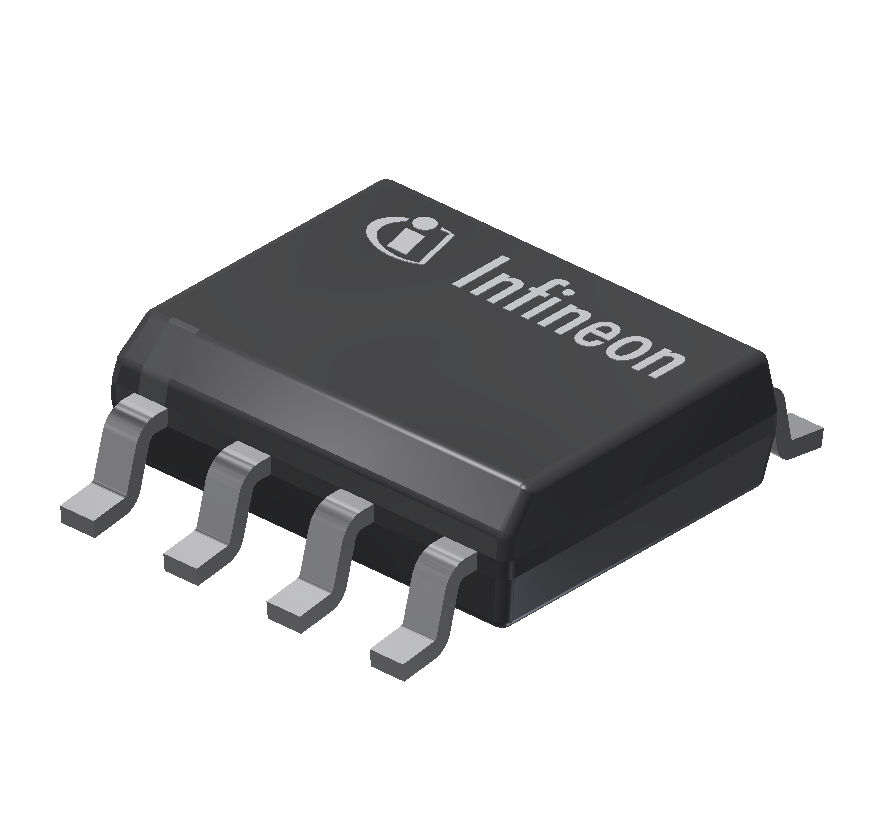

PG-DSO-8
封装名 N/A
封装尺寸 2500
封装类型 TAPE & REEL
湿度 2a
防潮封装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
封装产地
PH
晶圆产地
DE
替换型号

产品状态 not for new design
英飞凌封装名称
PG-DSO-8
封装名 -
封装尺寸 2500
封装类型 TAPE & REEL
湿度 2a
防潮封装 DRY
无铅
无卤素
符合 RoHS 标准
封装产地
PH
晶圆产地
DE
替换型号
The TLE9251VSJ meets the current ISO11898 standard, upcoming 2016 version, SAE J1939, J2284-4/5. It features a low power Stand-by mode with bus wake-up pattern (WUP) detection according to ISO 11898-2 (2016). Offered in PG-DSO-8 and leadless PG-TSON-8 (TLE9251VLE) packages, it provides high ESD robustness, low EME, stringent EMC compliance, CAN FD support up to 5 MBit/s, and fail-safe features for ideal passive behavior.

特性

  • Fully compliant to ISO11898-2 (2016)
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 5 MBit/s
  • Very low electromagnetic emission (EME) allows the use without additional common mode choke
  • V IO input for voltage adaption to the microcontroller interface (3.3V or 5V)
  • Bus wake-up Pattern (WUP) function with optimized filter time for worldwide OEM usage
  • Stand-by mode with minimized quiescent current
  • Transmitter supply V CC can be turned off in Stand-by mode for additional quiescent current savings
  • Also available in tiny, leadless PG-TSON-8 package ready for automated optical inspection (AOI)
  • Excellent ESD robustness
  • Extended supply range on the V CC and V IO supply
  • TxD time-out function
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low CAN bus leakage current in power-down state
