TLS105B0MB

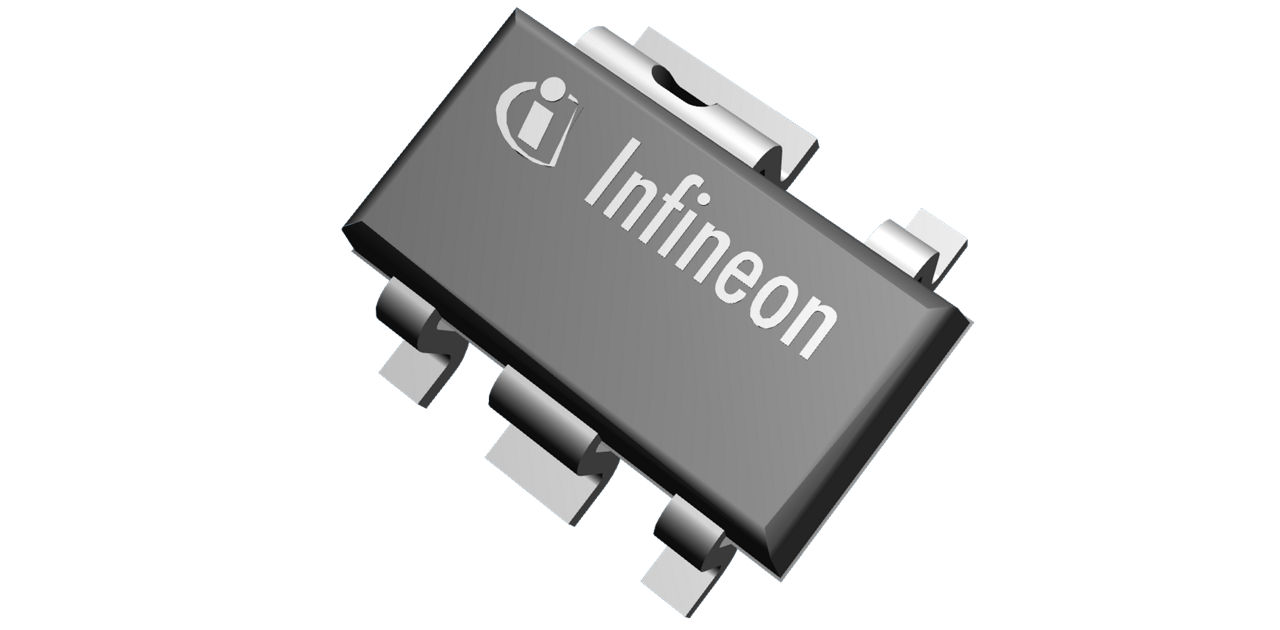

TLS105B0MB 是一款单片集成低压差电压跟踪调节器,采用小型 PG-SCT595-5 封装,具有高精度。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS105B0MB
TLS105B0MB
每件.

商品详情

  • Hold
    no
  • Accuracy
    0.1 %
  • Dropout Voltage
    250 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLS10xB0MB
  • Reset
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    4 V to 40 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Family
    OPTIREG™ linear Trackers
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    Trackers
  • Output Voltage Type
    Tracking
  • Output Current max
    50 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    40 µA
  • Budgetary Price €/1k
    0.32
  • Early Warning
    no
OPN
TLS105B0MBHTSA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅 Yes
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 3000
包装类型 TAPE & REEL
湿度 1
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLS105B0MB 是一款汽车 IC,用于为动力传动系统管理中的传感器等车载系统供电。它具有反极性和短路保护功能。电源电压高达 40V,输出电流高达 50mA,输出电压准确跟踪 EN/ADJ 输入处的参考电压,最低要求为 2.0V。

特性

  • 50 mA 电流能力
  • 非常高精度的跟踪
  • 输出电压可调至 2.0 V
  • 使用陶瓷输出电容器时保持稳定
  • 250mV 典型压差
  • 关机模式下电流消耗为 3uA
  • 宽温度范围:-40°C ≤ Tj ≤150°C
  • 输出短路保护(至 GND)
  • 输入反极性保护
  • 过温保护

产品优势

  • 设计紧凑,经济高效。
  • 高精度电压跟踪
