现货,推荐
符合RoHS标准
无铅

TLS810B1LD V50

TLS810B1LD V50 是一款线性电压调节器,具有宽输入电压范围、低压差电压和超低静态电流。
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS810B1LD V50
TLS810B1LD V50
每件.

商品详情

  • Hold
    no
  • Accuracy
    2 %
  • Dropout Voltage
    200 mV
  • Enable (=Inhibit)
    yes
  • Base Product
    TLS810B1xx
  • Reset
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.75 V to 42 V
  • Status Output
    no
  • Power Fail
    no
  • Power Good
    no
  • Watchdog
    no
  • Family
    OPTIREG™ linear High Performance
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Regulator Type
    High Performance
  • Output Voltage Type
    5.0 V
  • Output Current max
    100 mA
  • Over Voltage Protection
    no
  • Quiescent Current
    5.5 µA
  • Budgetary Price €/1k
    0.53
  • Early Warning
    no
OPN
TLS810B1LDV50XUMA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 5000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 5000
包装类型 TAPE & REEL
湿度 2a
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
TLS810B1LDV50 是一款低静态电流调节器,采用 3.3mm * 3.3mm TSON10 汽车封装。输入范围为 2.75V 至 42V,非常适合汽车应用。5.0V 输出、2% 精度和 100mA 电流能力。只需要 1μF 陶瓷电容器。启用开/关控制功能,消耗<1μA。适用于启动期间的系统。包括电流限制和过热关断的内部保护。

特性

  • 宽输入电压范围:2.75V 至 42 V
  • 100 mA 电流能力
  • 固定输出电压:5V
  • 超低静态电流:5.5μA
  • 低压差电压:250 mV @ 100mA
  • 使能功能
  • 使用 1μF 输出电容时稳定
  • 稳定的铝、钽或陶瓷
  • 输出电流限制保护
  • 过热保护
  • PG-TSON-10 封装

产品优势

  • 汽车级:坚固耐用且经济高效
  • 优化的 1µF 陶瓷输出电容
  • 超低待机功耗,节省能源。

图表

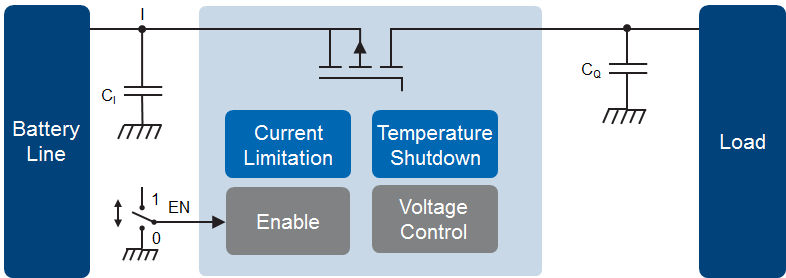

Blockdiagram_TLS810B1_LDV50
Blockdiagram_TLS810B1_LDV50
Blockdiagram_TLS810B1_LDV50 Blockdiagram_TLS810B1_LDV50 Blockdiagram_TLS810B1_LDV50

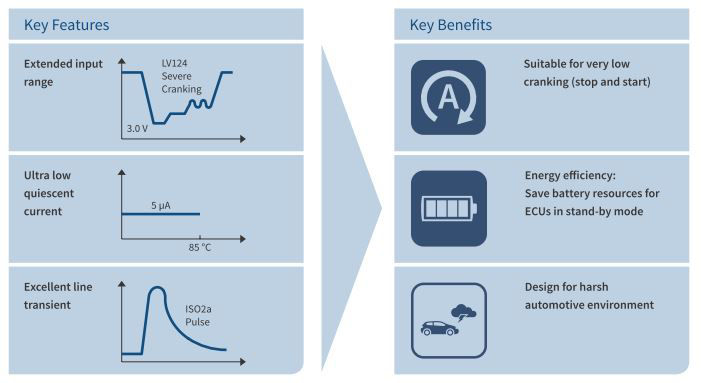

Key_Features_and_Benefits Key_Features_and_Benefits Key_Features_and_Benefits
Key_Features_and_Benefits Key_Features_and_Benefits Key_Features_and_Benefits
Blockdiagram_TLS810B1_LDV50 Blockdiagram_TLS810B1_LDV50 Blockdiagram_TLS810B1_LDV50
