TLV4964-4TA

XENSIV ™ - TLV4964-4TA 磁性霍尔开关,适用于带极轮的索引计数应用
每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLV4964-4TA
TLV4964-4TA
每件.

商品详情

  • Bhyst
    1.5 mT
  • Bop
    10 mT
  • Brp
    8.5 mT
  • Product Category
    Sensors
  • Product Description
    Low cost unipolar Hall switch for consumer applications in a leaded package
  • Supply Voltage
    3 V to 26 V
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Interfaces
    open collector
  • Temperature
    -40 °C to 125 °C
  • Type
    Unipolar
  • Currently planned availability until at least
    2038
  • Language
    Magnetics
OPN
TLV49644TAXBXA1
产品状态 active and preferred
英飞凌封装名称 PG-TO92S-3
封装名 N/A
包装尺寸 4000
包装类型 BULK
湿度 NA
防潮包装 NON DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称 PG-TO92S-3
封装名 -
包装尺寸 4000
包装类型 BULK
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货

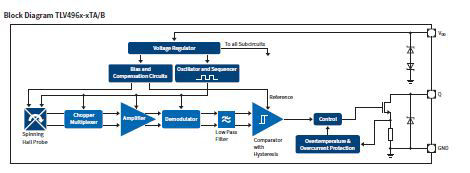

TLV496x-xTA/B 磁性开关系列:非常适合非接触式位置传感。精密霍尔开关/锁存器(单极/双极)的经济高效的解决方案。宽工作温度范围和优异的磁性能。适用于索引计数、转子位置检测(在 BLDC 电机中)、开/关检测。

特性

  • 3.0 V 至 26 V 工作电源电压
  • 低电流消耗 1.6 mA
  • ESD 保护 4 kV HBM
  • 采用非稳压电源供电
  • 输出过流、过热保护
  • 主动误差补偿(斩波)
  • 工作温度范围:-40 °C 至 125 °C
  • 高 ESD 性能
  • 符合 JESD47 标准
