XMC7200D-E272K8384AA

每件.
有存货

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XMC7200D-E272K8384AA
XMC7200D-E272K8384AA
每件.

商品详情

  • A/D Input Lines
    99 channels
  • CAN Nodes
    10
  • CPU
    Dual ARM Cortex-M7
  • DMA Channels
    3 DMA controllers with 216 channels
  • DSP Functionality
    yes
  • I/O Operation Voltages
    2.7 V to 5.5 V
  • SRAM (incl. Cache)
    1024 kByte
  • SRAM
    1024 kByte
  • Serial I/O Interfaces
    14
  • Type of Serial I/O Interfaces
    UART I²C I²S SPI
  • Additional Features
    Crypto, 2 x Ethernet up to 10/103
  • Power Mode
    Six power modes
  • External Bus Interface
    yes
  • Type of Memory
    Flash
  • Timed I/O Pins
    102 channels
  • Real Time Clock
    yes
  • Package
    PG-LFBGA-272
  • Fast Flash Programming
    no
  • Oscillator Watchdog
    yes
  • Halogen-free
    yes
  • Secondary Core
    ARM Cortex-M0+
  • Floating Point Unit
    yes
  • Temperature
    -40 to 125°C
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Watchdog Timer
    yes
  • Program Memory
    8384 kByte
  • Family
    XMC7200
  • Green Product
    yes
  • Qualification
    Industrial
  • Flash
    8384 kByte
  • Budgetary Price €/1k
    15.77
  • Frequency max
    350 MHz
OPN
XMC7200D-E272K8384AA
产品状态 active and preferred
英飞凌封装名称
封装名 FBGA-272 (002-24865)
包装尺寸 960
包装类型 TRAY
湿度 3
防潮包装 DRY
无铅 Yes
无卤素 Yes
符合RoHS标准 Yes
Infineon stock last updated:
每件. 有存货

产品状态
Active
英飞凌封装名称
封装名 FBGA-272 (002-24865)
包装尺寸 960
包装类型 TRAY
湿度 3
防潮包装 DRY
无铅
无卤素
符合 RoHS 标准
每件.
有存货
XMC4100/4200 系列属于基于 Arm® Cortex-M4® 处理器内核的XMC4000工业微控制器系列。 XMC4100/4200 系列微控制器充分利用了英飞凌数十年的微控制器设计经验,为应对当今嵌入式控制应用的性能挑战提供了优化的解决方案。 XMC4300将 Arm® Cortex-M4® 内核的扩展功能和性能与强大的片上外设子系统和片上存储单元相结合。

特性

  • 单/双 350 MHz Arm ® Cortex ® -M7 和 Cortex ® -M0+
  • 高达 8 MB 闪存,高达 1MB SRAM
  • 7 V 至 5.5 V 电源电压
  • 高达 125°C 扩展级温度范围
  • 接口:最多 10 通道 CAN FD,最多 11 通道 SCB
  • eMMC、SMIF (QSPI/HS-SPI),最多 2 通道 10/100/1000 Mbit 以太网
  • ADC:最多 96 通道,12 位,带有 3 个逐次逼近型 ADC (SAR ADC) 单元
  • 计时器:最多 15 通道 16 位用于电机控制,87 通道 16 位计时器/计数器/脉冲宽度调制 (TCPWM)和 16 通道 32 位 TCPWM
  • 事件生成定时器
  • 可用封装:QFP-176、BGA-272

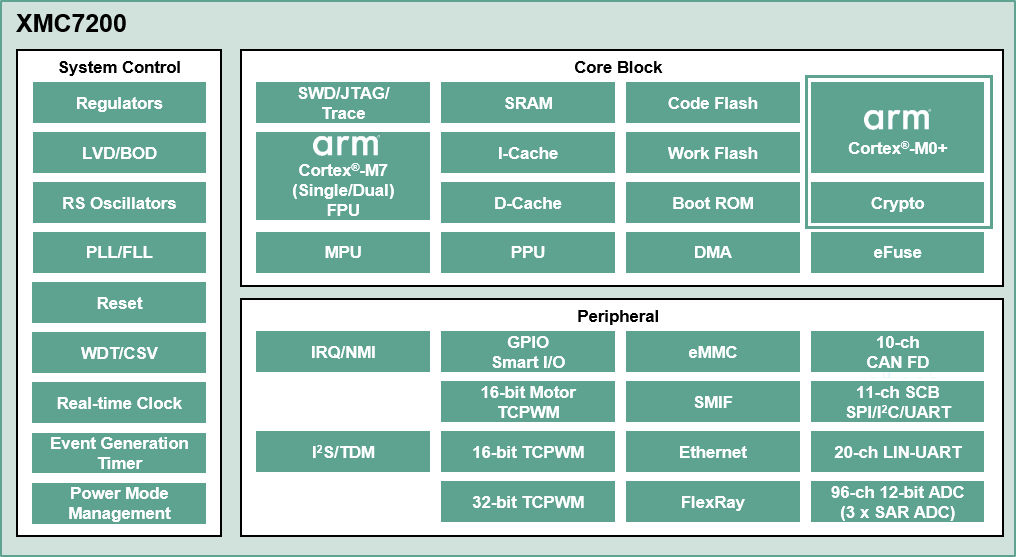

图表

XMC7200-Diagram
XMC7200-Diagram
XMC7200-Diagram XMC7200-Diagram XMC7200-Diagram
XMC7200-Diagram XMC7200-Diagram XMC7200-Diagram
