应用领域/适用场景:商用车刹车系统

方案亮点:主动控制刹车,防撞系统,为安全出行保驾护航。

AEB是一种汽车主动安全技术,主要由3大模块构成,包括控制模块(ECU),测距模块,和制动模块。其中测距模块的核心包括微波雷达、人脸识别技术和视频系统等,它可以提供前方道路安全、准确、实时的图像和路况信息。AEB系统采用雷达测出与前车或者障碍物的距离,然后利用数据分析模块将测出的距离与警报距离、安全距离进行比较,小于警报距离时就进行警报提示,而小于安全距离时即使在驾驶员没有来得及踩制动踏板的情况下,AEB系统也会启动,使汽车自动制动,从而为安全出行保驾护航。

(1)雷达范围水平0-160m,角度±8°。

(2)模块间通讯采用CAN通讯方式
(3)满足商用车辆自动紧急制动系统(AEBS)标准。

Commercial Vehicle Aeb Anti Collision System Schematic Diagram
Commercial Vehicle Aeb Anti Collision System Schematic Diagram
Commercial Vehicle Aeb Anti Collision System Schematic Diagram

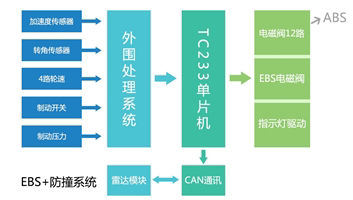

【图1】原理图

Commercial Vehicle Aeb Anti Collision System Prototype Picture1
Commercial Vehicle Aeb Anti Collision System Prototype Picture1
Commercial Vehicle Aeb Anti Collision System Prototype Picture1

【图2】样机图1

Commercial Vehicle Aeb Anti Collision System Prototype Picture2
Commercial Vehicle Aeb Anti Collision System Prototype Picture2
Commercial Vehicle Aeb Anti Collision System Prototype Picture2

【图3】样机图2

Commercial Vehicle Aeb Anti Collision System Prototype Picture3
Commercial Vehicle Aeb Anti Collision System Prototype Picture3
Commercial Vehicle Aeb Anti Collision System Prototype Picture3

【图4】样机图3
