现货,推荐
符合RoHS标准

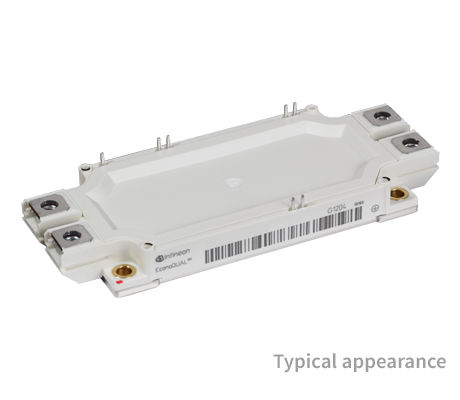

FF225R17ME4P

1700 V、225 A 双 IGBT 模块

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF225R17ME4P
FF225R17ME4P

商品详情

  • IC(nom) / IF(nom)
    225 A
  • IC max
    225 A
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Housing
    EconoDUAL™ 3
  • Dimensions (length)
    152 mm
  • Dimensions (width)
    62 mm
  • Technology
    IGBT4 - E4
  • Features
    TIM
  • Voltage Class max
    1700 V
  • Qualification
    Industrial
  • Configuration
    half-bridge
OPN
FF225R17ME4PBPSA1
产品状态 active and preferred
英飞凌封装名称
封装名 N/A
包装尺寸 6
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅 No
无卤素 No
符合RoHS标准 Yes
Infineon stock last updated:

产品状态
Active
英飞凌封装名称
封装名 -
包装尺寸 6
包装类型 TRAY
湿度 NA
防潮包装 NON DRY
无铅
无卤素
符合 RoHS 标准
EconoDUAL ™ 3 1700 V、225 A 半桥双 IGBT 模块,具有低饱和度和快速 TRENCHSTOP ™ IGBT4、发射极控制 3 二极管和预涂热界面材料。也可提供采用 PressFIT 安装技术的变体:FF225R17ME4P_B11。

特性

  • 轻松分离直流电和交流电
  • 优化的热阻
  • 最高的功率密度
